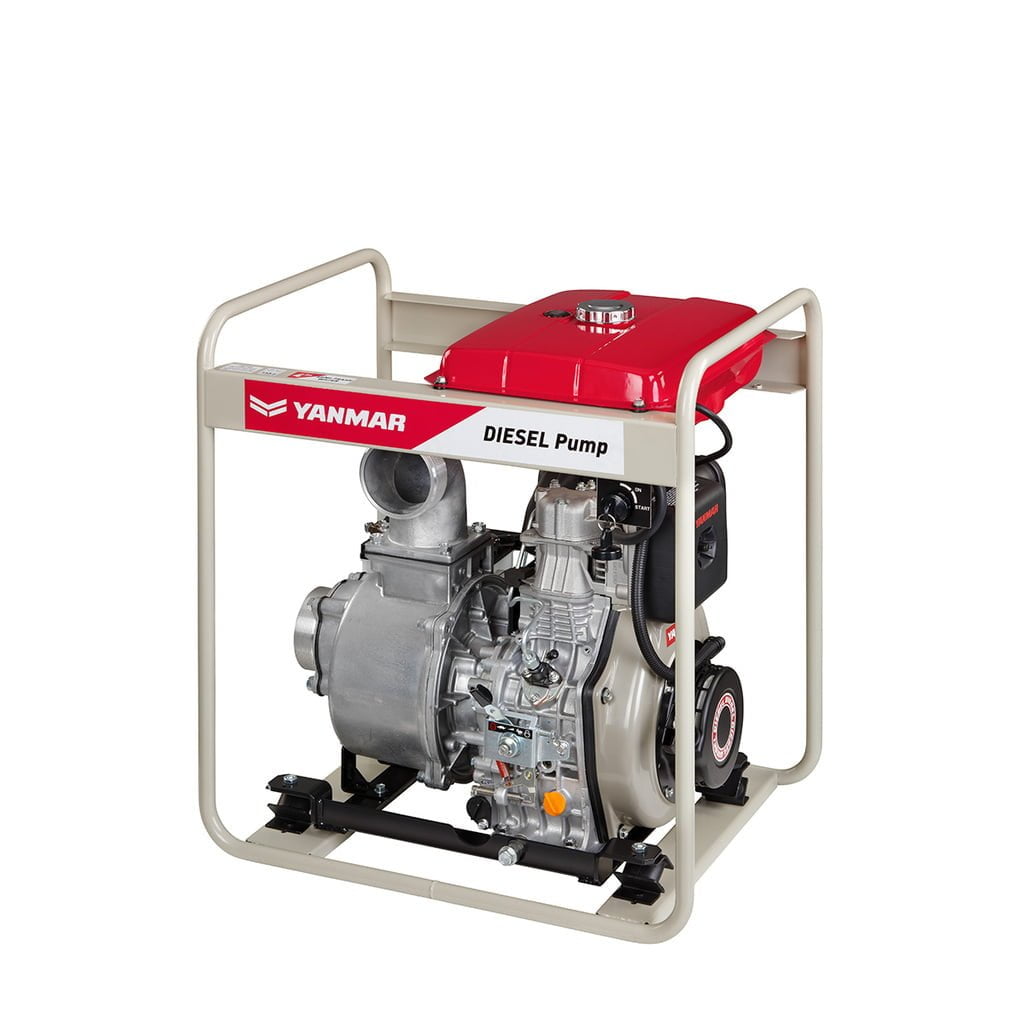

Yanmar YDP Semi-Dirty Water Pump (20/30/40) STV(E)
Yanmar YDP Semi-Dirty Water Pump (20/30/40) STV(E)
Model:
YDP (20/30/40) STV(E)Weight:
-Engine:
L486V-PEYI2/L70V6V-PEYI2 -CV
See catalog em Português
Share
Details
Portable Diesel Pumps!
A new era in diesel pump technology - 9 Models and up to 1,750 ltr/min
A proven performer, now compatible with STAGE V UE
Having proven its credentials in some of the world's harshest working environments, the enhanced and robust YDP series of diesel pumps is now EU STAGE V and CE certified, bringing its performance excellence to Europe.
State-of-the-art features including electric start
The new highly robust and reliable YDP series has 44 models with a variety of features designed to increase productivity and uptime, including an advanced Yanmar engine, a much larger than standard fuel tank and electric start.
Operator Friend
The low-noise, low-vibration YDP pumps are easier to maintain than ever and are compact and simple to transport with the (optional) wheel kit – all backed by a two-year warranty.
Low fuel consumption and versatility of outputs
The modern four-stroke Yanmar engine, with direct injection, ensures low fuel consumption. Available in a wide variety of output powers to suit numerous applications and varying contents from fresh water to liquids with significant amounts of debris.
High performance and high throughput
Each model has a high output power ranging from 500 to 1,750 liters per minute coupled with low noise and vibration.
Built in Europe
The pumps are manufactured at Yanmar's facilities in Italy, ensuring fast delivery and parts maintained locally for quick availability. Many of the parts are made from high-quality cast iron and cast steel.
SEMI-DIRTY WATER PUMPS
| Semi-dirty water pumps | ||||
|---|---|---|---|---|
| Model | YDP20STV(E) | YDP30STV(E) | YDP40STV(E) | |
| BOMB | Type | Self-priming pump | ||
| Suction & Discharge ø (mm) (“) | 50 (2“) | 80 (3“) | 100 (4“) | |
| Maximum height(m) | 22.5 | 23 | 25 | |
| Lifting suction(m) | 7 | |||
| Maximum capacity(ltr/min) | 550 | 850 | 1300 | |
| MOTOR | Model | L48V6V-PSTYI2 (L48V6V-PESTYI2) | L70V6V-PYI2 (L70V6V-PEYI2) | |
| Type | 4-stroke, air-cooled diesel engine | |||
| Displacement (cc) | 219 | 320 | ||
| Maximum output (kW/rpm) | 3.4/3600 | 4.8/3600 | ||
| Continuous output (kW/rpm) | 3.1/3600 | 4.3/3600 | ||
| Starting system | Manual/Electric | |||
| Fuel tank capacity (ltr) | 13 | |||
| UNIT | Dimensions WxDxH (mm) | 530x484x637 | 630x484x727 | |
| Dry weight Manual (Electric)(kg) | 46 (61) | 47 (63) | 61 (76) | |
