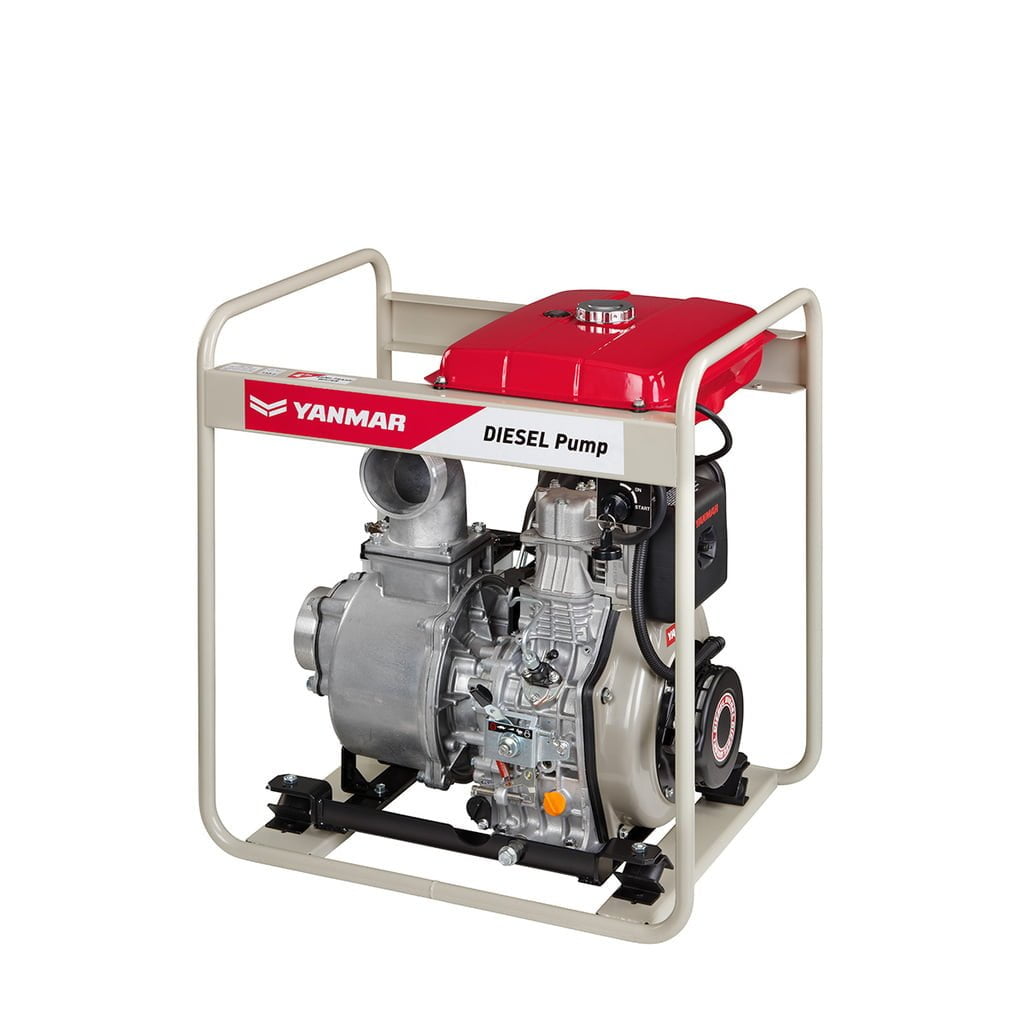

Portable Diesel Pumps!

A new era in diesel pump technology - 9 Models and up to 1,750 ltr/min

---

A proven performer, now compatible with STAGE V UE

Having proven its credentials in some of the world's harshest working environments, the enhanced and robust YDP series of diesel pumps is now EU STAGE V and CE certified, bringing its performance excellence to Europe.

State-of-the-art features including electric start

The new highly robust and reliable YDP series has 44 models with a variety of features designed to increase productivity and uptime, including an advanced Yanmar engine, a much larger than standard fuel tank and electric start.

Operator Friend

The low-noise, low-vibration YDP pumps are easier to maintain than ever and are compact and simple to transport with the (optional) wheel kit – all backed by a two-year warranty.

Low fuel consumption and versatility of outputs

The modern four-stroke Yanmar engine, with direct injection, ensures low fuel consumption. Available in a wide variety of output powers to suit numerous applications and varying contents from fresh water to liquids with significant amounts of debris.

High performance and high throughput

Each model has a high output power ranging from 500 to 1,750 liters per minute coupled with low noise and vibration.

Built in Europe

The pumps are manufactured at Yanmar's facilities in Italy, ensuring fast delivery and parts maintained locally for quick availability. Many of the parts are made from high-quality cast iron and cast steel.

---

CLEAN WATER PUMPS

Clean water pumps
Model		YDP20V(E)	YDP30V(E)	YDP40V(E)
BOMB	Type	Self-priming pump
	Suction & Discharge ø (mm) (“)	50 (2“)	80 (3“)	100 (4“)
	Maximum height(m)	32	28	26.5
	Lifting suction(m)	7
	Maximum capacity(ltr/min)	550	900	1300
MOTOR	Model	L48V6V-PYI2 (L48V6V-PEYI2)		L70V6V-PYI2 (L70V6V-PEYI2)
	Type	4-stroke, air-cooled diesel engine
	Displacement (cc)	219		320
	Maximum output (kW/rpm)	3.4/3600		4.8/3600
	Continuous output (kW/rpm)	3.1/3600		4.3/3600
	Starting system	Manual/Electric
	Fuel Tank Capacity (LTR)	13
UNIT	Dimensions WxDxH (mm)	530x484x637		630x484x727
	Dry weight Manual (Electric)(kg)	46 (61)	48 (63)	62 (77)
