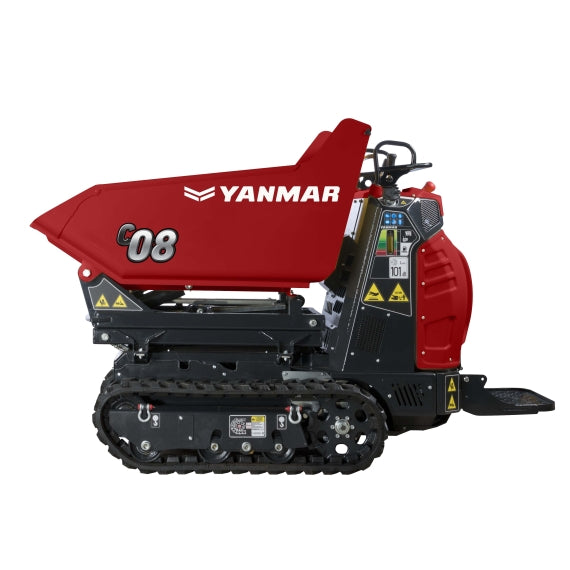

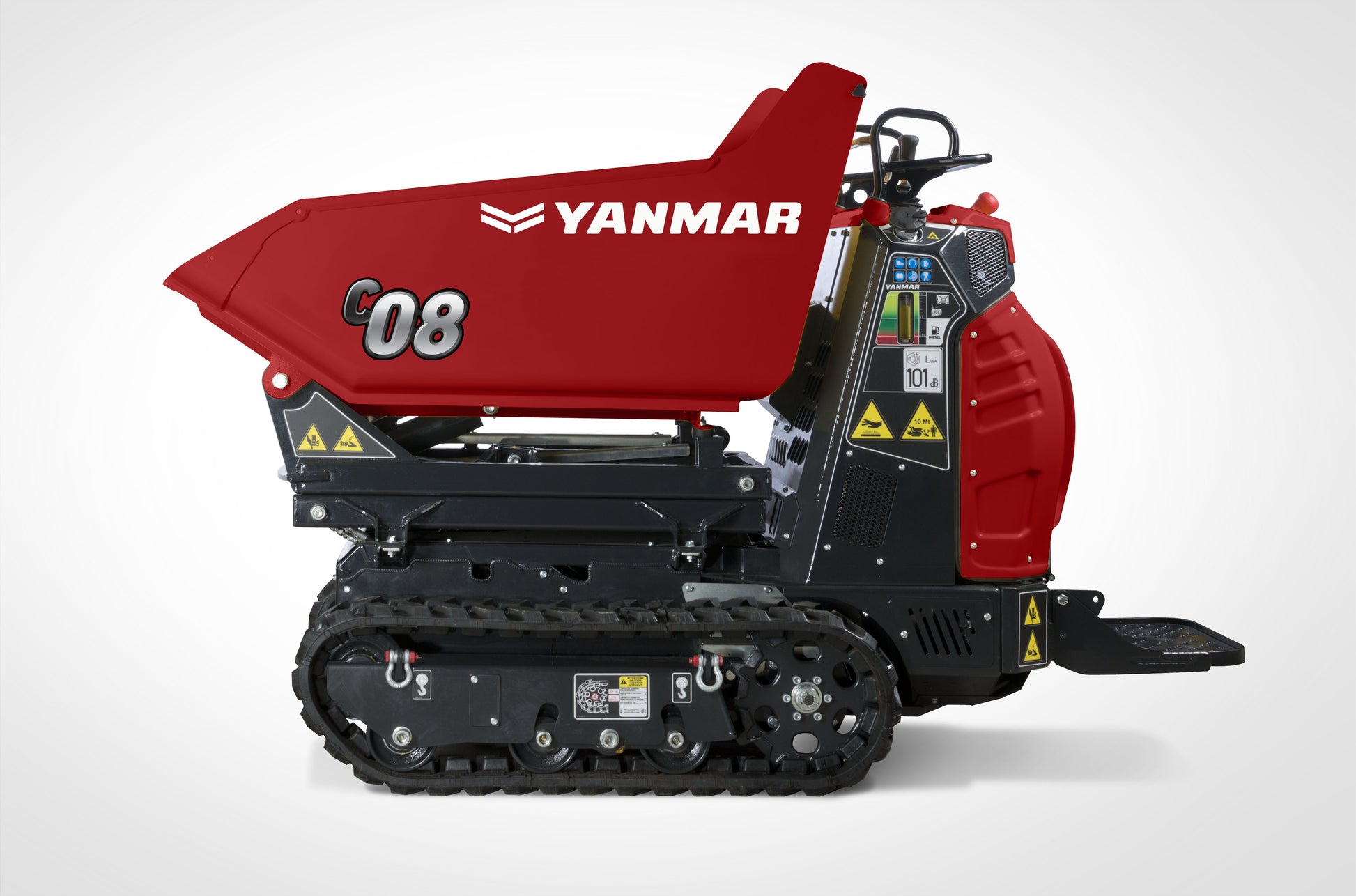

Mini Dumper Yanmar C08-A Hi Tip+
Mini Dumper Yanmar C08-A Hi Tip+
Model:
C08-A Hi Tip+Weight:
770Engine:
Yanmar 10.0CV
See catalog
Share
Details

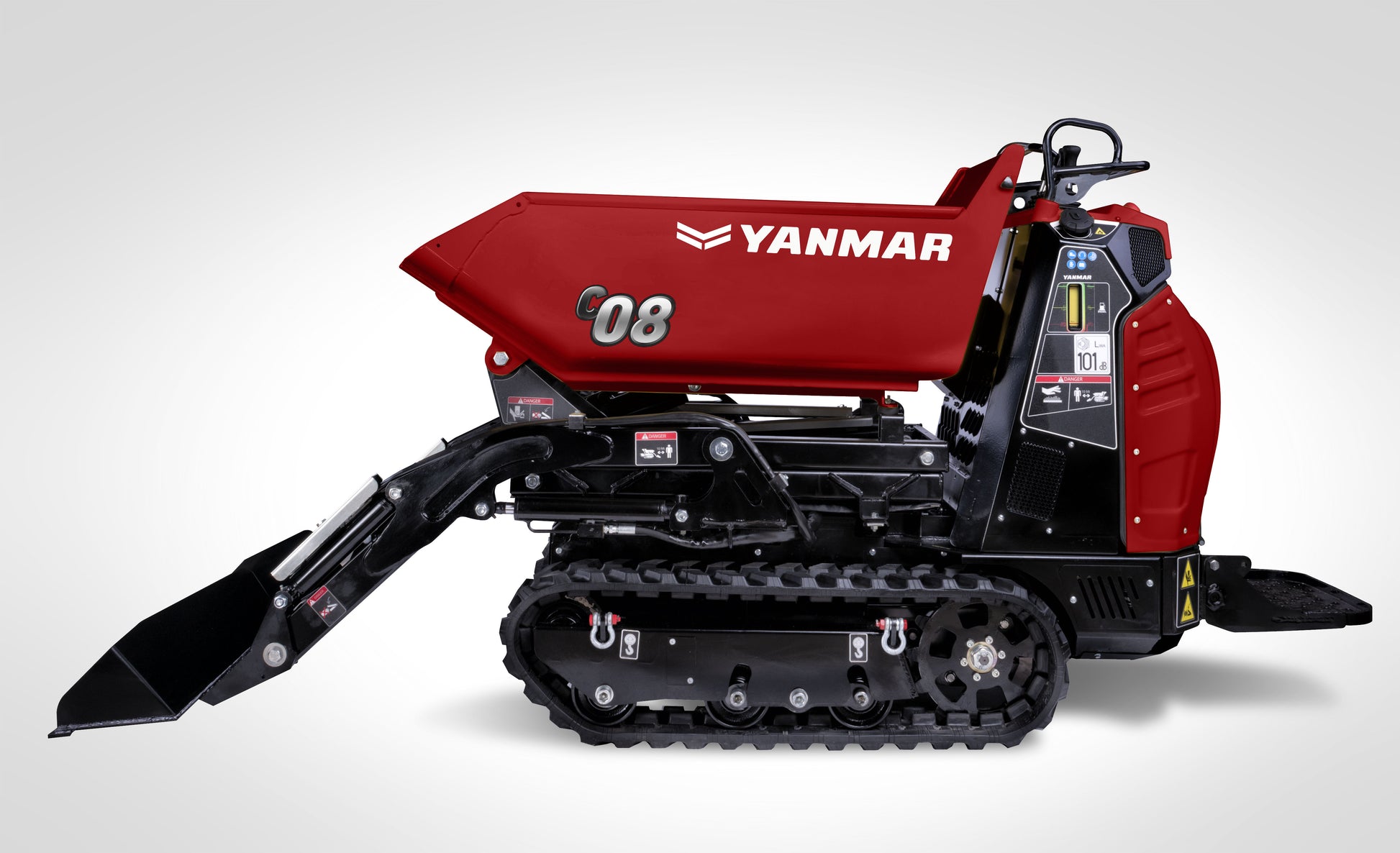

The Mini Dumper Yanmar C08 exists in 4 versions. With or without high discharge and with or without self-charging.
| Specifications | C08-A Power | C08-A Power + | C08-A HiTip | C08-A HiTip + | |
|---|---|---|---|---|---|
| Weight | shipping weight | 491 kg | 587 kg | 593 kg | 690 kg |
| Operating Weight | 566 kg | 662 kg | 668 kg | 765 kg | |
| Charge | 800 kg | ||||
| Motor | Type | LV 100 | |||
| Fuel | Diesel | ||||
| Net Power | 8.7 hp | ||||
| displacement | 0.435 l | ||||
| Maximum torque | 24.3 Nm at 3100 rpm | ||||
| Cooling | Air | ||||
| Starter | 12V - 0.8kW | ||||
| Battery | 12V – 55Ah | ||||
| Alternator | 12V - 15A | ||||
| Streaming | Type | hydrostatic | |||
| service pump | 2 variable flow pumps for progress and one fixed flow for equipment | ||||
| operating pressure | 150 bar | ||||
| performance | Maximum speed | 4 km/h | |||
| Attack | 20th | ||||
| Noise level (2000/14/EC & 2005/88/EC) | 101 dBA | ||||
| unloading system | discharge angle | 62nd | 72nd | ||
| bucket dimensions | 1115x779x478 | 1115x633x381 | 1115x779x478 | 1115x633x381 | |
| discharge mechanism | 1 side (rear) | 1 side (rear) self-loading | 1 side (rear) with high discharge | 1 side (rear) with high discharge and autoload |
|
| Bucket capacity (flat/heaped) | 0.34 m³ / 0.45 m³ | 0.28 m³ / 0.36 m³ | 0.28 m³ / 0.36 m³ | ||
| pass height | 230mm | 1350 mm | |||
| tempo system | width of tracks | 180mm | |||
| ground clearance | 115mm | ||||
| track tension system | adjustable screw | ||||
| Ground pressure (unloaded/loaded) | 0.20 / 0.48 kg/cm² | 0.23 / 0.52 kg/cm² | 0.24 / 0.52 kg/cm² | 0.27 / 0.56 kg/cm² | |
| Capabilities | hydraulic tank | 13 l | |||
| hydraulic circuit | 14 l | ||||
| Fuel tank | 10 l | ||||
