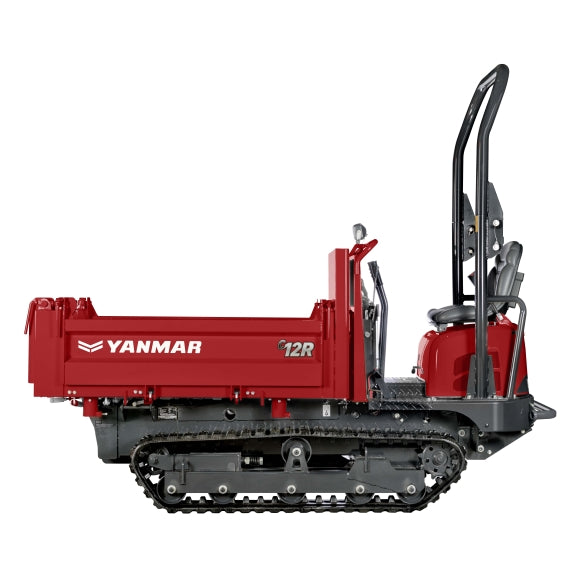

Mini Dumper Yanmar C12R-C

Mini Dumper Yanmar C12R-C

New

Model:

C12R-C

Weight:

1.100

Engine:

Yanmar 10.2CV See catalog

Share

View full details

Details

Weight shipping weight 1025 kg Operating Weight 1100 kg Charge 1150 kg Motor Type 402J-05 IG84557R Fuel Diesel Net Power 7.5 kw / 10.2 hp / 2800 rpm displacement 0.507 l Maximum torque 30.8 Nm at 2200 rpm Cooling Water Starter 12V - 1.2 kW Battery 12V – 36Ah Alternator 12V - 14A Streaming Type Hydrostatic and reduction gear service pump gear pump for unloading Maximum flow 11.5 l/min operating pressure 160 bar performance Maximum speed 5.5 km/h Attack 30th Noise level (2000/14/EC & 2005/88/EC) Lwag = 99 dBA; Lpag = 84 dBA unloading system discharge angle 56th / 58th bucket dimensions 1470 x 860 x 315mm discharge mechanism 3 sides Bucket capacity (flat/heaped) 0.4 / 0.52 m³ pass height 325mm tempo system width of tracks 230mm ground clearance 150mm track tension system adjustable screw Ground pressure (unloaded/loaded) 0.20 / 0.41 kg/cm² Capabilities hydraulic tank 14 l hydraulic circuit 16.5 l Fuel tank 14.5 l
