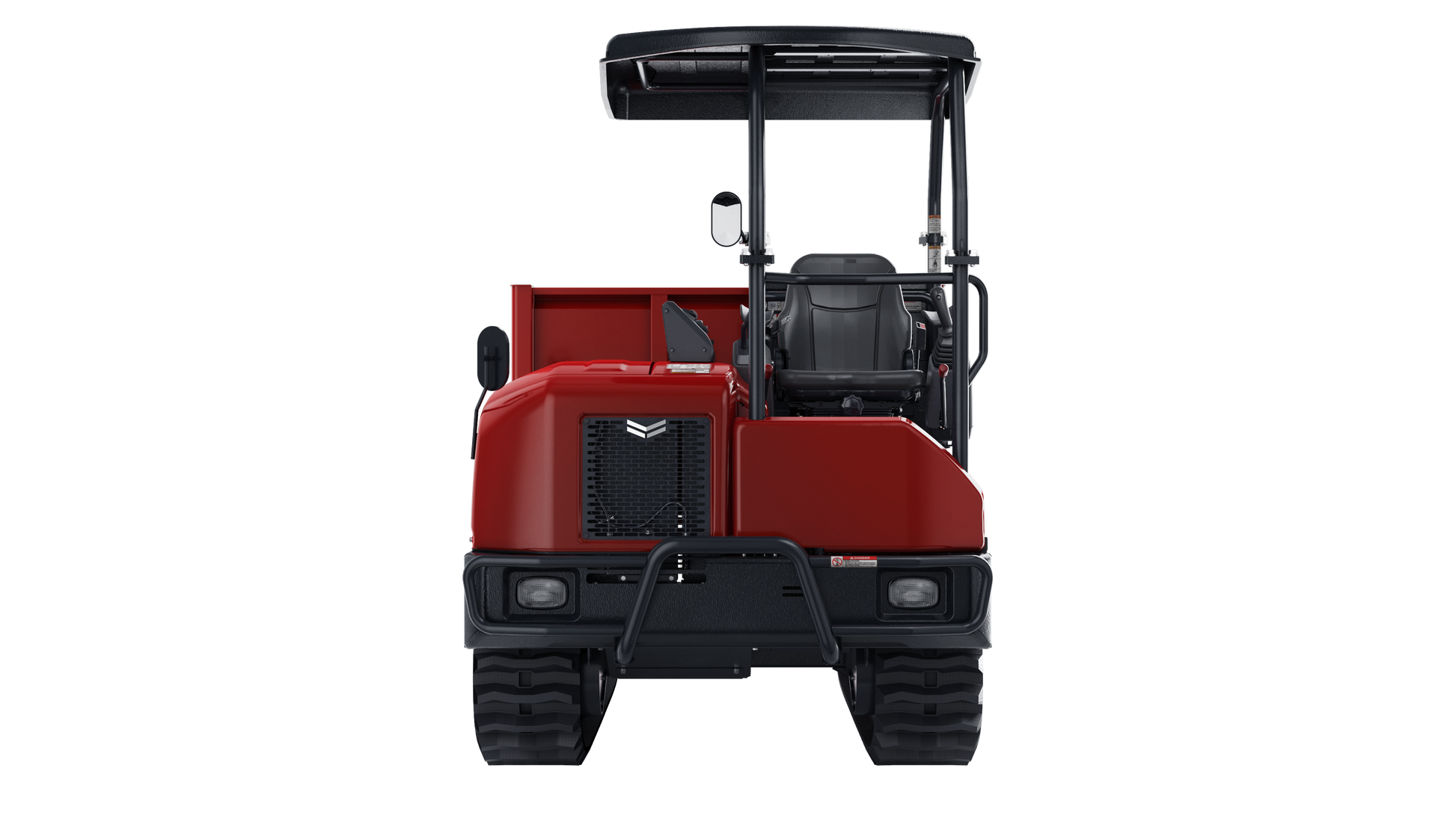

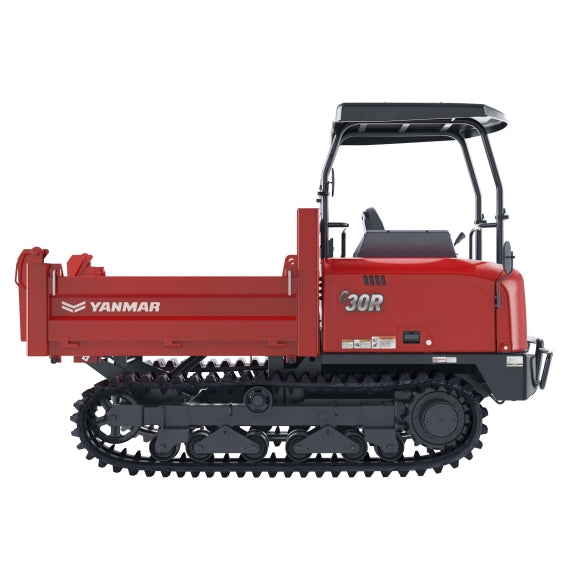

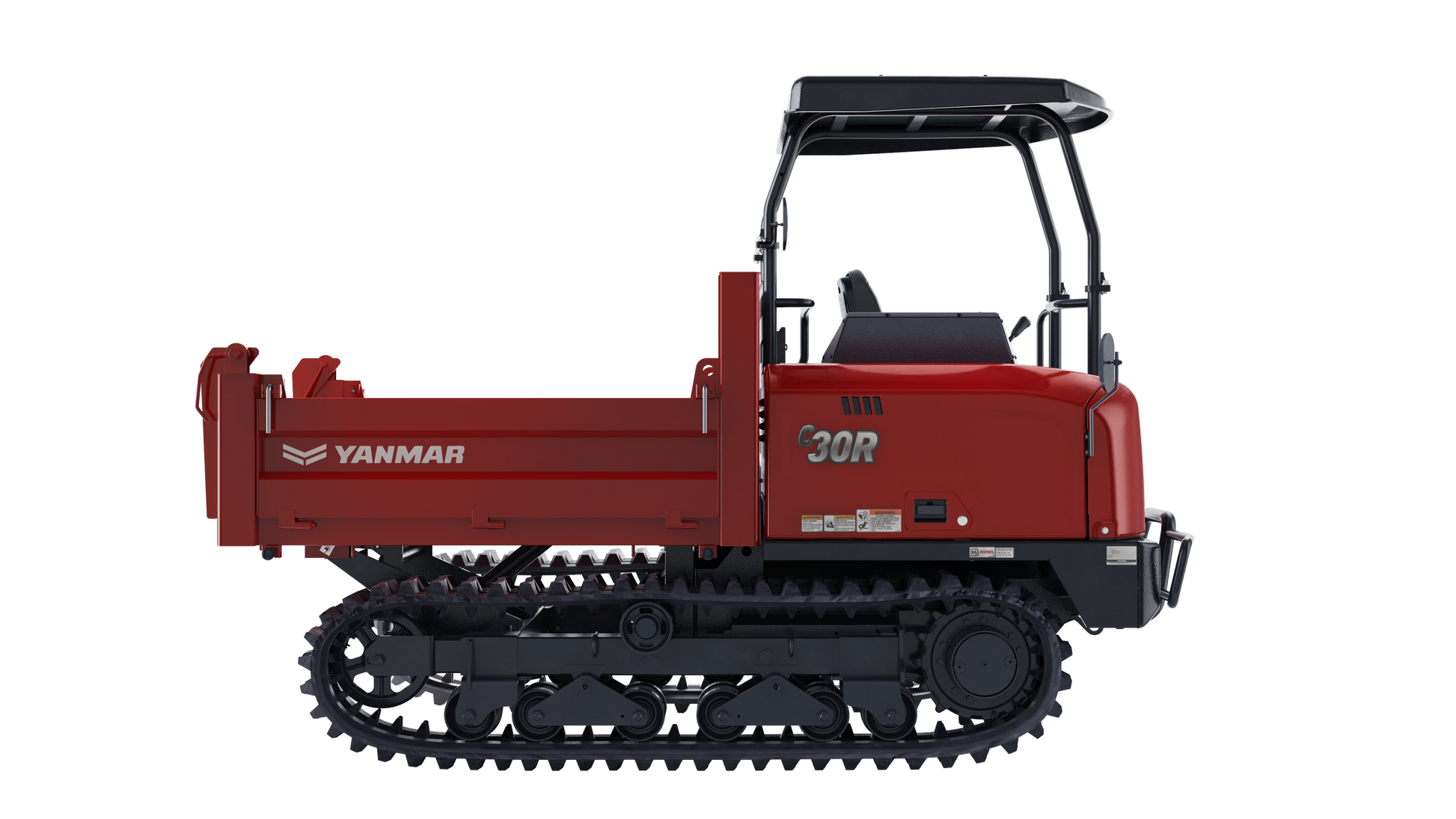

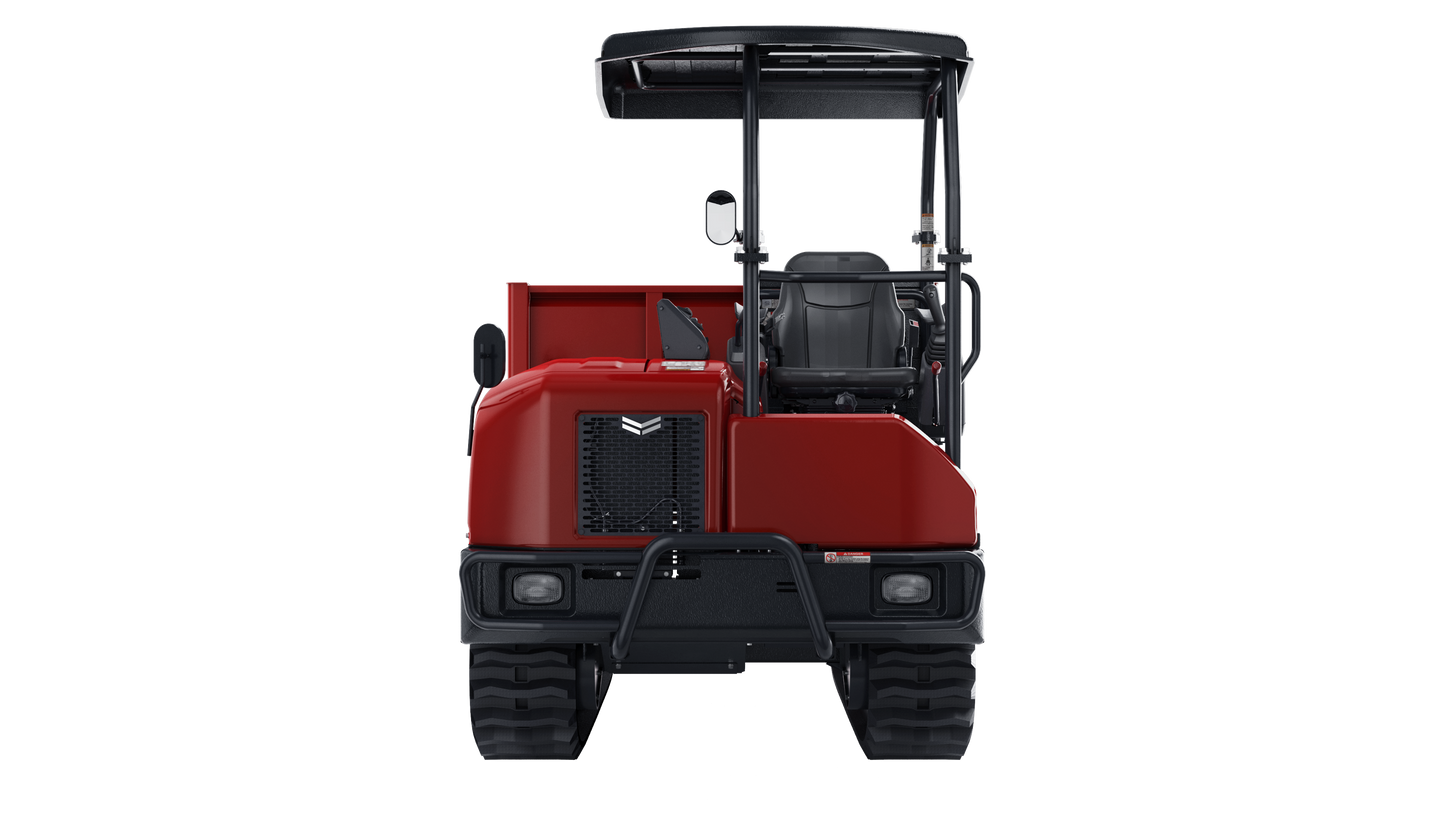

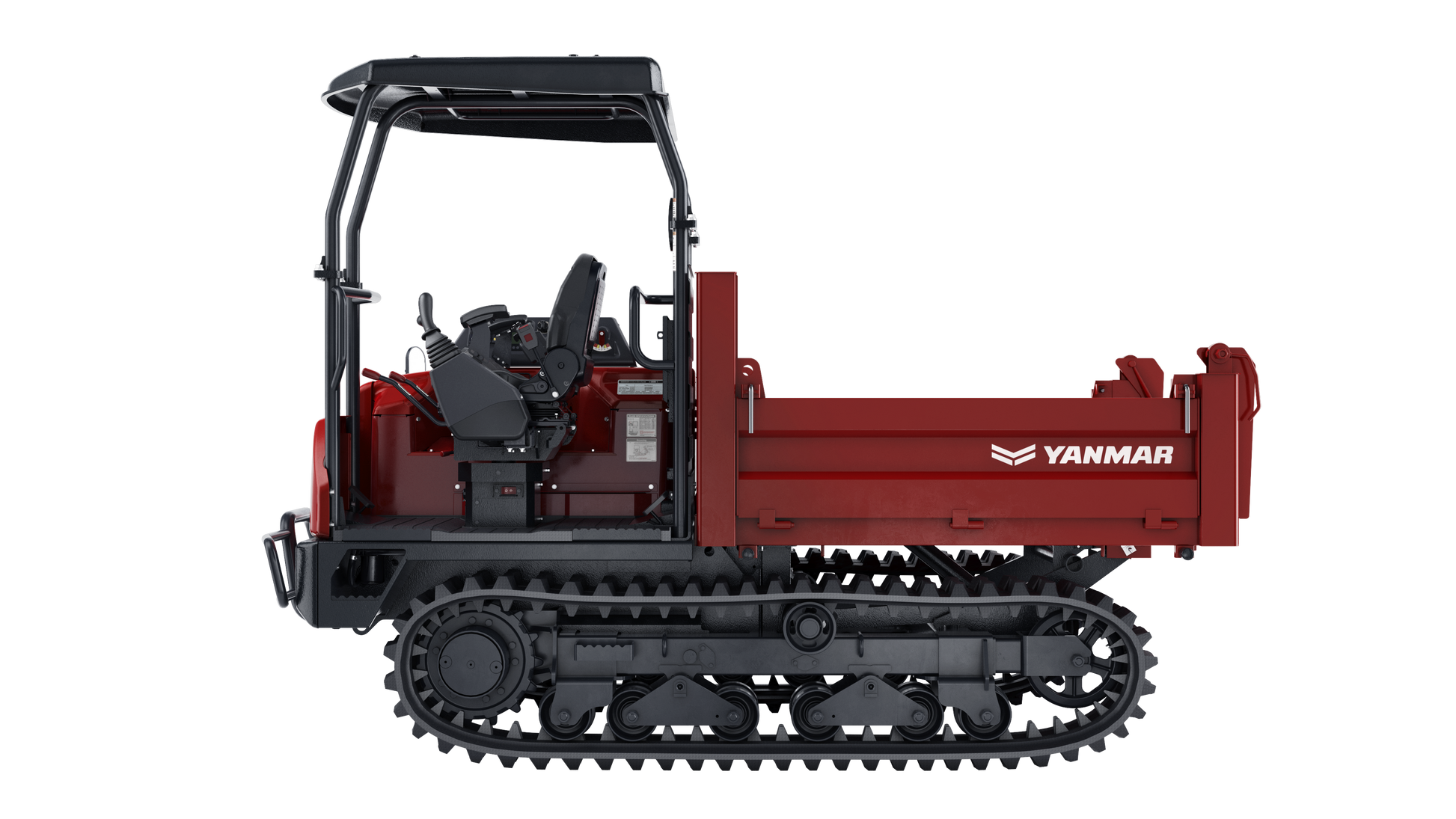

Mini Dumper Yanmar C30R-3 STD
Mini Dumper Yanmar C30R-3 STD
Model:
C30R-3 STDWeight:
2.650Engine:
Yanmar 46.0CV
See catalog em Português
See catalog em Espanhol
Share
Details
The Mini Dumper Yanmar C30R-3 exists in 2 versions. With or without discharge rotary discharge.
| Specifications | C30R-3 | C30R-3TV | |
|---|---|---|---|
| Weight | shipping weight | 2575 kg | 2790 kg |
| Operating Weight | 2650 kg | 2865 kg | |
| Charge | 2500 kg | ||
| Motor | Type | 4TNV88C | 4TNV88C-KFW |
| Fuel | Diesel | ||
| Net Power | 32.5 kW at 2800 rpm | ||
| displacement | 2,189 liters | ||
| Maximum torque | 134.5 – 146.2 Nm at 1820 rpm | ||
| Cooling | Water | ||
| Starter | 12V - 1.7kW | ||
| Battery | 12V – 72Ah | ||
| Alternator | 12V - 55A | ||
| Streaming | Type | HST | |
| service pump | 2 variable flow pumps | ||
| operating pressure | 350 bar | ||
| Performance | Maximum speed | 5.7 / 11 km/h | |
| Attack | 30th | ||
| Noise level (2000/14/EC & 2005/88/EC) | Lwag = 98 dBA; Lpag = 86 dBA | ||
| unloading system | discharge angle | 58th | 85th |
| bucket dimensions | 1685 x 1410 x 370mm | 2010 x 1390 x 505mm | |
| discharge mechanism | 3 sides | 180º discharge | |
| Bucket capacity (flat/heaped) | 0.88 / 1.24 m³ | 1.13 / 1.50 m³ | |
| pass height | 455mm | 730 mm | |
| tempo system | width of tracks | 320mm | |
| ground clearance | 265mm | 280mm | |
| track tension system | hydraulic adjustment | ||
| Ground pressure (unloaded/loaded) | 0.27 / 0.53 kg/cm² | 0.30 / 0.57 kgf/cm² | |
| Capabilities | hydraulic tank | 28 l | |
| hydraulic circuit | 38 l | ||
| Fuel tank | 58 l | ||
