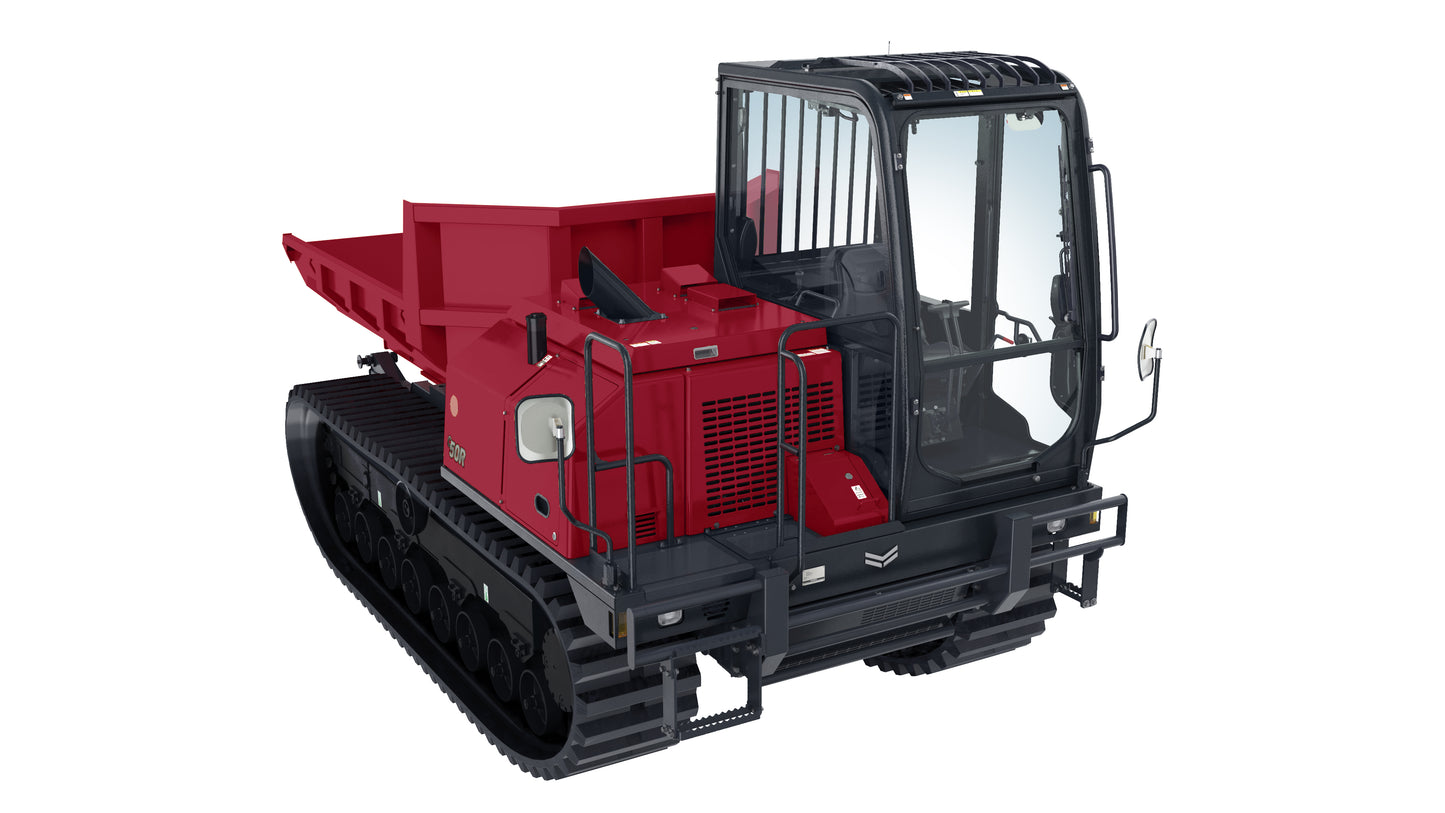

Mini Dumper Yanmar C50R-5A Cab
Mini Dumper Yanmar C50R-5A Cab
Model:
C50R-5A CabineWeight:
6.050Engine:
Yanmar 111.6CV
See catalog em Português
See catalog em Espanhol
Share
Details
The Mini Dumper Yanmar C50R-5A exists in 2 versions. With rear discharge or trilateral discharge.
| Specifications | C50R-5A | C50R-5ATV | |
|---|---|---|---|
| Weight | shipping weight | 5940 kg | 6270 kg |
| Operating Weight | 6015 kg | 6345 kg | |
| Charge | 3800 kg | 3500 kg | |
| Motor | Type | 4TNV94FHT | |
| Fuel | Diesel | ||
| Net Power | 83.2 kW at 2500 rpm | ||
| displacement | 3,053 l | ||
| Maximum torque | 378-410 Nm at 1700 rpm | ||
| Cooling | Water | ||
| Starter | 12V - 3kW | ||
| Battery | 12V – 72Ah | ||
| Alternator | 12V - 80A | ||
| Streaming | Type | HST | |
| service pump | variable pump | ||
| operating pressure | P1: 69.5 l/min x 28 bar; P2: 34.3 l/min x 206 bar; P3: 12.8 l/min x 49 bar | ||
| performance | Maximum speed | 7 km/h | 9.5 km/h |
| Attack | 20th | ||
| Noise level (2000/14/EC & 2005/88/EC) | 102 dBA | ||
| unloading system | discharge angle | 65th | |
| bucket dimensions | 2500 x 1844 x 294 mm | 2616 x 1794 x 285mm | |
| discharge mechanism | 1 side (rear) | 3 sides | |
| Bucket capacity (flat/heaped) | 1.4 / 2.3 m³ | 1.2 / 2.1 m³ | |
| pass height | 658 mm | 891 mm | |
| tempo system | width of tracks | 450mm | |
| ground clearance | 433.5mm | ||
| track tension system | Self-tensioning hydraulic adjustment | ||
| Ground pressure (unloaded/loaded) | 19.8 / 33 kPa | 20.9 / 33.1 kPa | |
| Capabilities | hydraulic tank | 44 l | |
| hydraulic circuit | 75 l | ||
| Fuel tank | 121.1 l | ||
