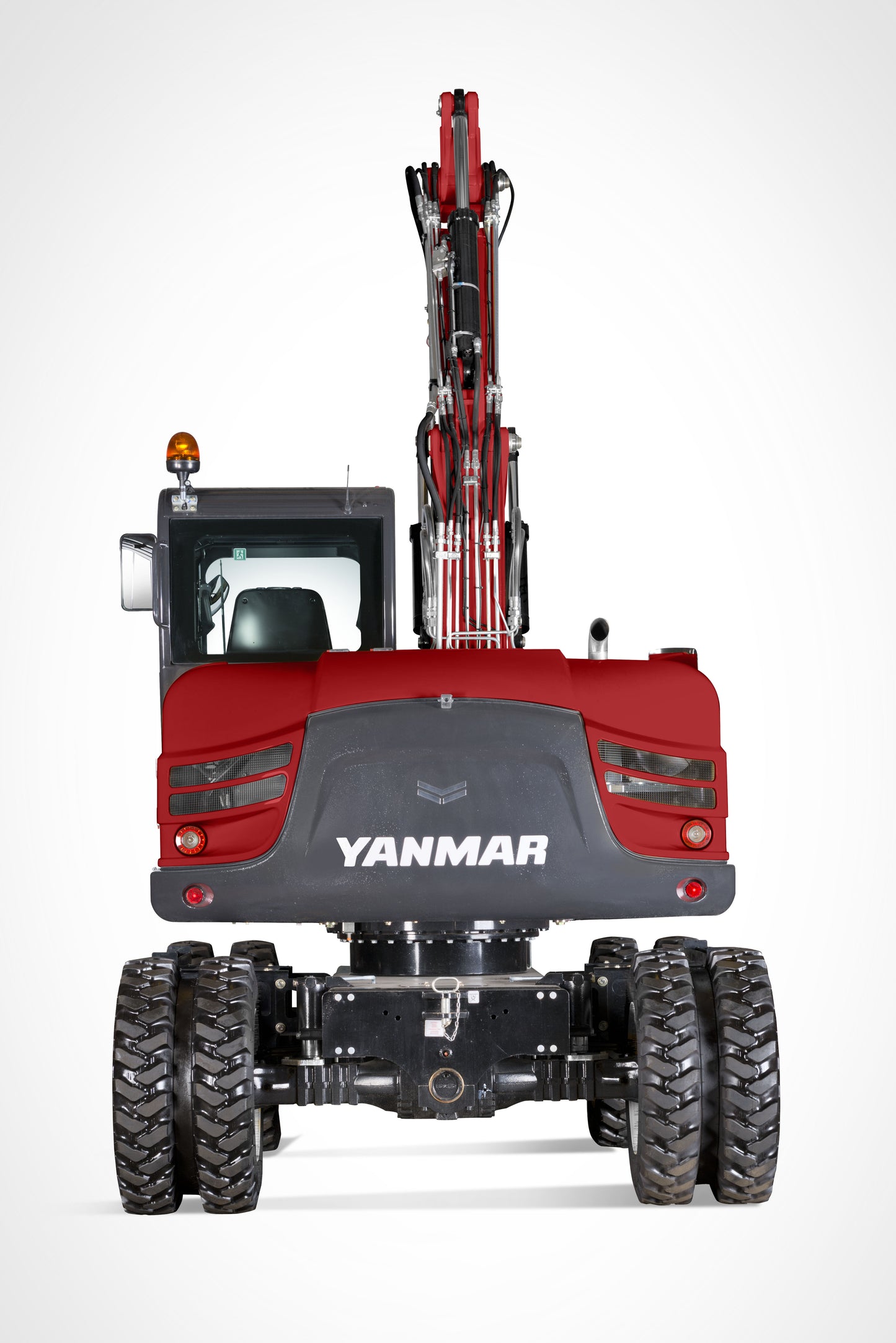

Yanmar B95W Wheel Excavator
Yanmar B95W Wheel Excavator
Model:
B95WWeight:
9.300Engine:
Deutz 101.0CV
See catalog
Share
Details
The Yanmar B95W can be equipped with an articulated or monobloc split boom.
| Specifications | B95W (Split Boom) | B95W (Monobloc Boom) | |
|---|---|---|---|
| Weight | Shipping Dimensions | 6300 x 2450 x 2930 mm | 6300 x 2450 x 2930 mm |
| Operating Weight | 9300 kg | 9100 kg | |
| Operation | Digging force (arm) | 53.2 kN | 53.2 kN |
| Digging Force (bucket) | 42.6 kN | 42.6 kN | |
| rotation speed | 0-10 rpm | 0-10 rpm | |
| Motor | Type | Deutz, TCD3.6 L4 | Deutz, TCD3.6 L4 |
| Fuel | Diesel | Diesel | |
| Net Power | 74.4 kW (101 hp) at 2000 rpm | 74.4 kW (101 hp) at 2000 rpm | |
| displacement | 3,600 cm3 | 3,600 cm3 | |
| Maximum torque | 410 Nm at 1600 rpm | 410 Nm at 1600 rpm | |
| Starter | 12V - 4 kW | 12V - 4 kW | |
| Battery | 12 V – 135 Ah | 12 V – 135 Ah | |
| Alternator | 14V - 95A | 14V - 95A | |
| Hydraulic system | service pump | Variable capacity axial piston pump with pressure adjustment and cut-off. 2 circuit system | Load sensing variable displacement axial piston pump |
| Maximum flow | 142 l/min | 142 l/min | |
| operating pressure | 420 bar | 420 bar | |
| Hydraulic Tank | 60 l | 60 l | |
| tempo system | front axle | oscillating drive shaft | oscillating drive shaft |
| rear axle | Rigid planetary final driveshaft | Rigid planetary final driveshaft | |
| Tires (standard) | 9.00-20, 14 PR twins | 9.00-20, 14 PR twins | |
| speed of progress | 0 - 36 km/h | 0 - 36 km/h | |
| sound level | sound level | LWA 100 dB (A) / LpA 74 dB (A) | LWA 100 dB (A) / LpA 74 dB (A) |
