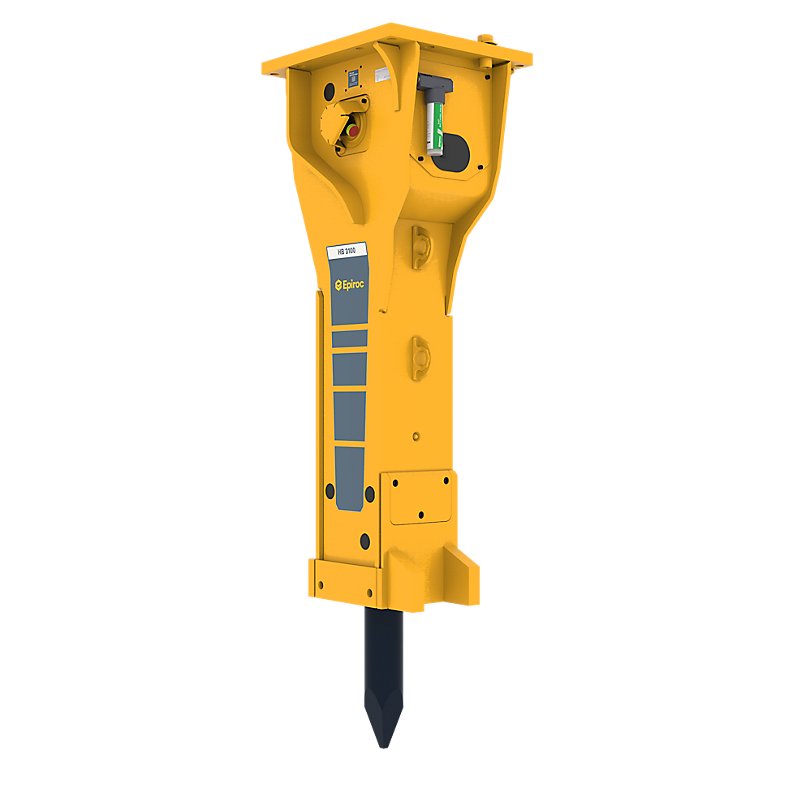

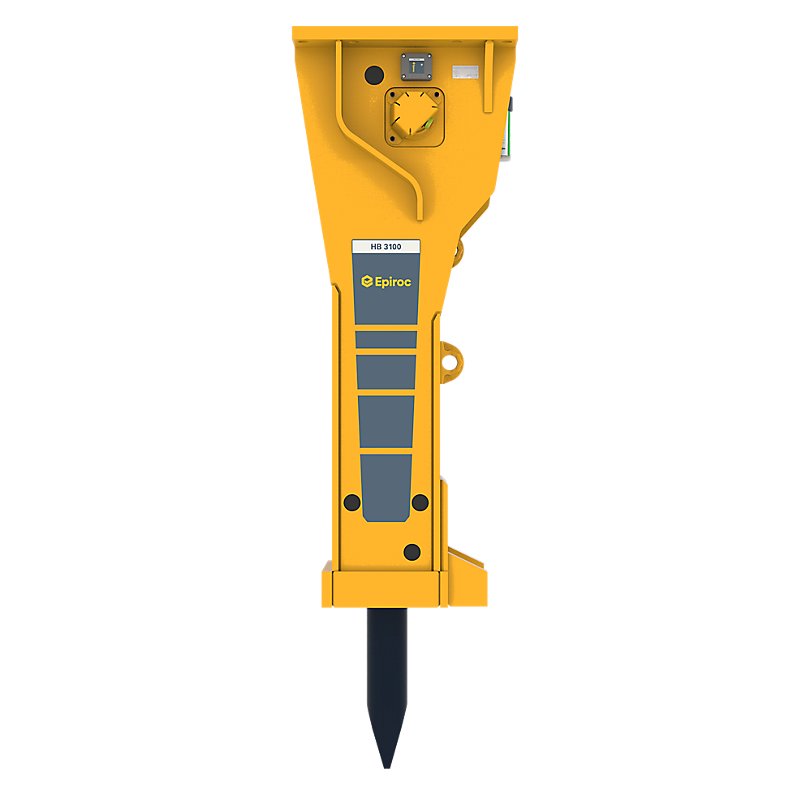

Epiroc HB 3100 hydraulic hammer

Epiroc HB 3100 hydraulic hammer

New

Model:

HB 3100

Weight:

3.100

Engine:

- - CV See catalog

Share

View full details

Details

A solid choice of exceptional performance!

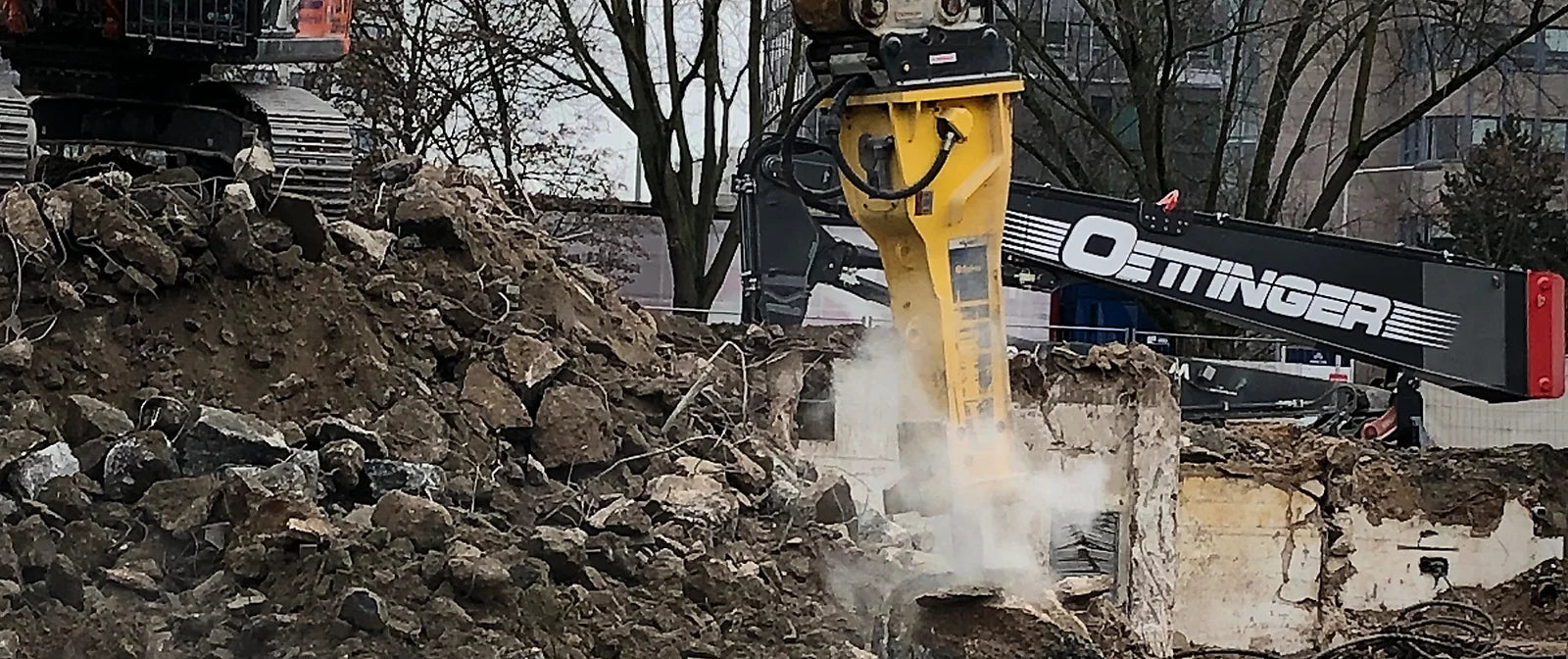

Epiroc HB breakers are heavy duty breakers. Adapted for rock excavation work without blasting, secondary rock demolition on construction sites and in quarries, surface and underground mines, as well as primary demolition work on massive reinforced concrete structures.

HB range HB 2000 HB 2500 HB 3100 HB 3600 HB 4100 HB 4700 HB 5800 HB 7000 HB 10000
carrier machine class t 22 - 38 27 - 46 32 - 52 35 - 63 40 - 70 45 - 80 58 - 100 70 - 120 85 - 140
service weight kg 2000 2500 3100 3600 4100 4700 5800 7000 10000
tool diameter mm 145 155 165 170 180 190 200 210 240
Maximum hydraulic power input kW 57 66 81 90 96 108 117 135 159
oil debt l/min 150 - 190 170 - 220 210 - 270 240 - 300 250 - 320 260 - 360 310 - 390 360 - 450 450 - 530
operating pressure Pub 160 -180 160 -180 160 -180 160 -180 160 -180 160 -180 160 -180 160 -180 160 -180
impact frequency bpm 300 - 625 280 - 580 280 - 560 280 - 560 280 - 550 280 - 540 280 - 480 280 - 450 250 - 380
sound power level dB(A) 120 121 120 123 124 126 121 121 123
