Yanmar SV26 Mini Excavator
Yanmar SV26 Mini Excavator
Model:
SV26Weight:
2,740/2,785Engine:
Yanmar 23.9CV
See catalog em Português
See catalog em Espanhol
Share
Produtos relacionados
-

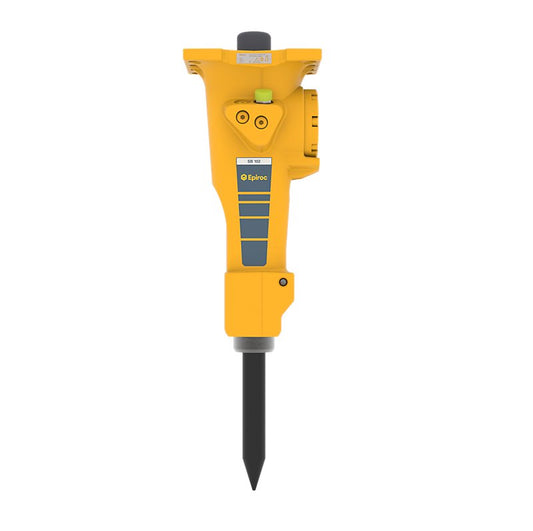

Epiroc SB 102 hydraulic hammer
Model: SB 102Engine: - - CVWeight: 90Vendor:Epiroc
New -
Multi-Glaw Epiroc MG 200 R
Model: MG 200 REngine: - - CVWeight: 180Vendor:EpirocNew -

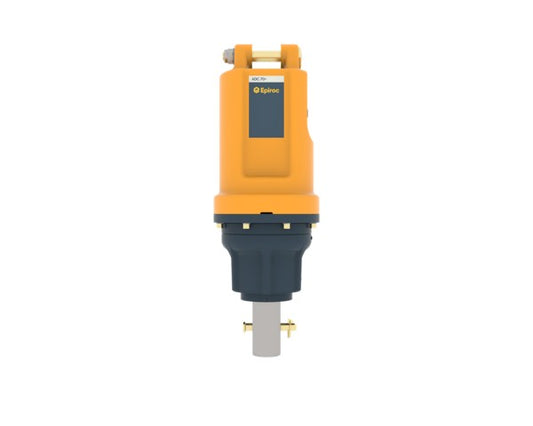

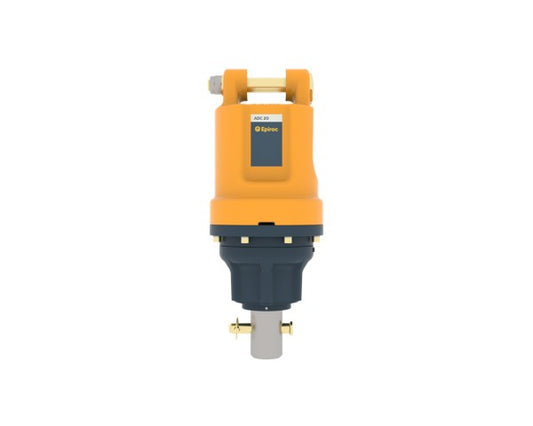

Trado Epiroc ADC 25
Model: ADC 25Engine: - -CVWeight: 59Vendor:EpirocNew
Details

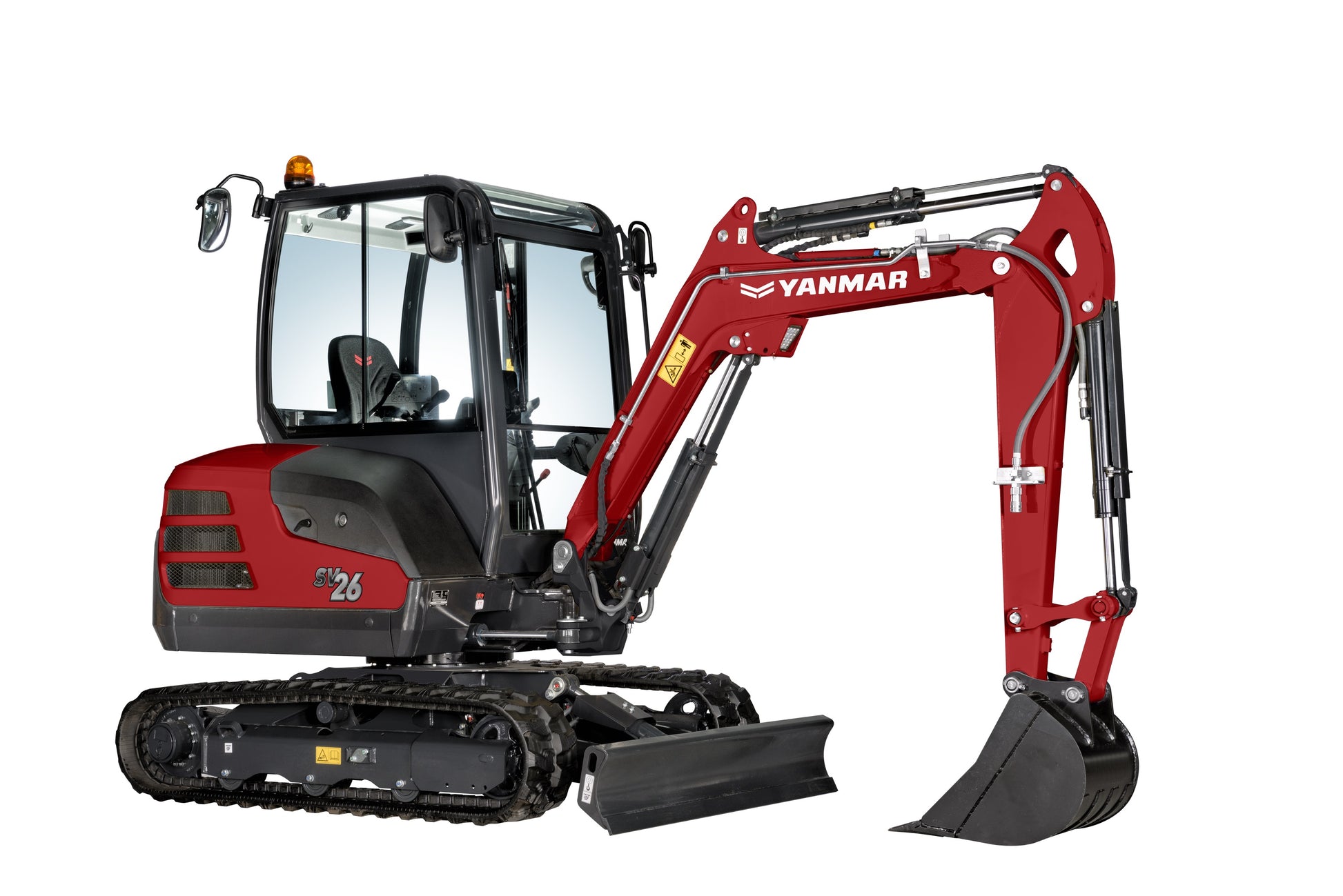

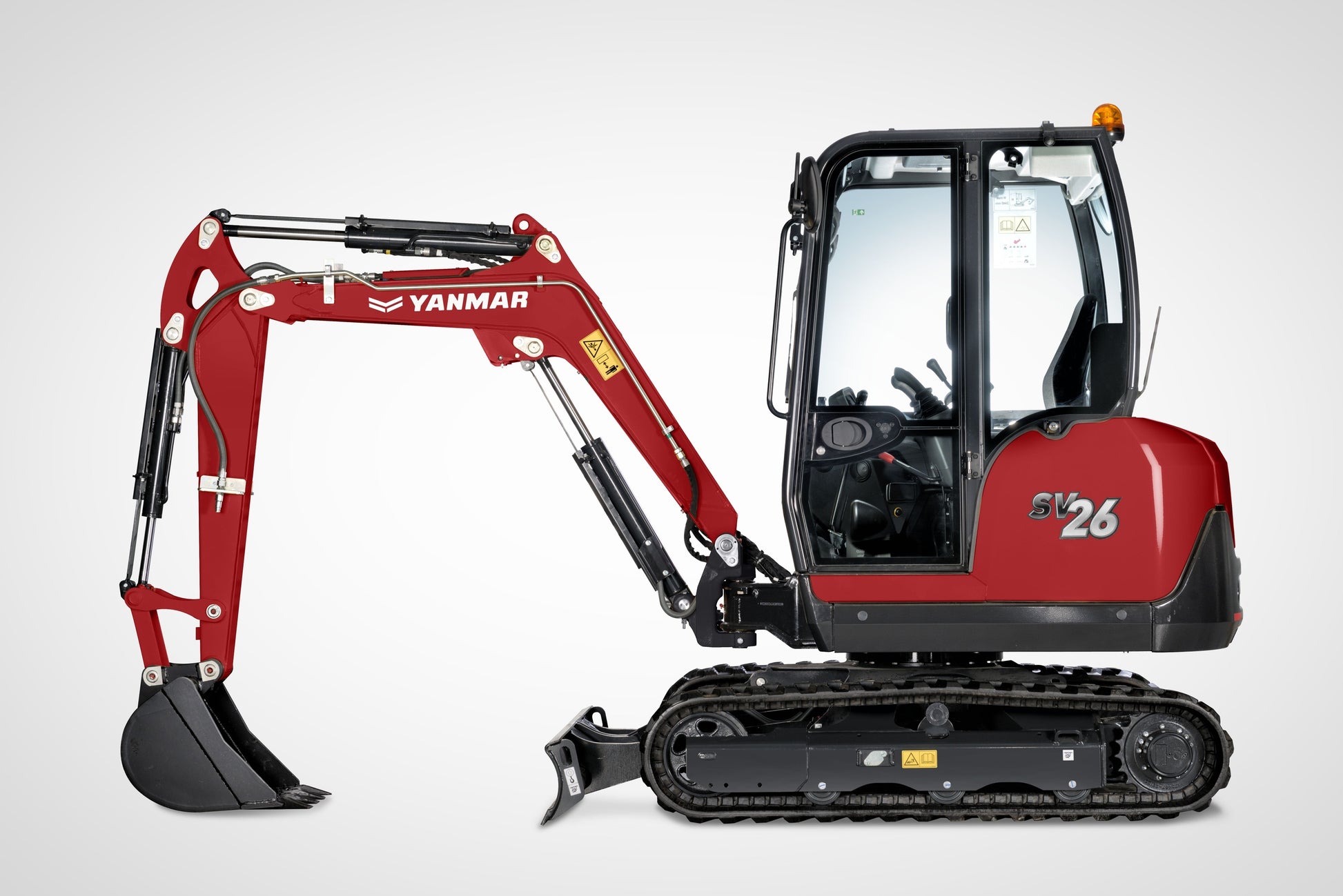

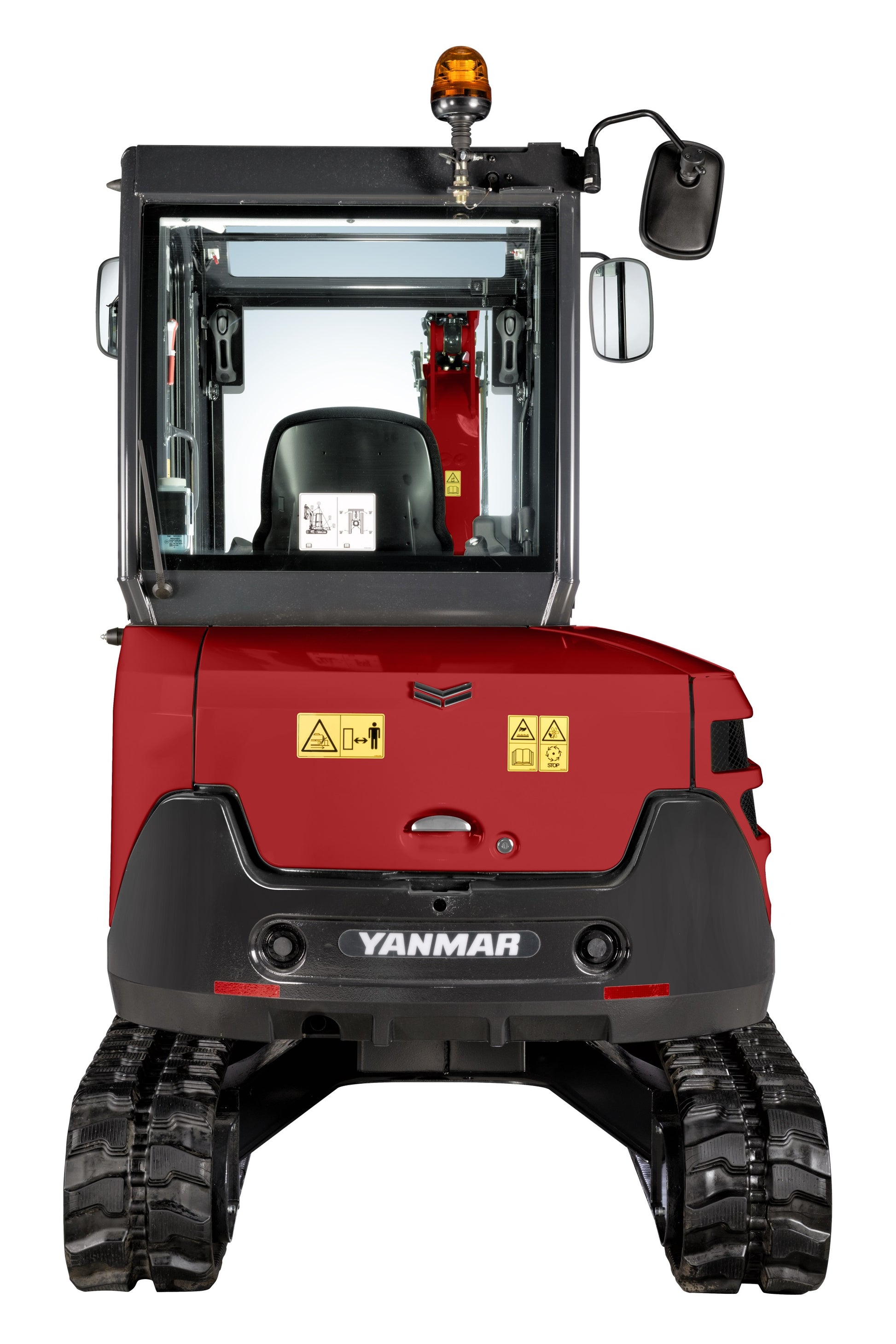

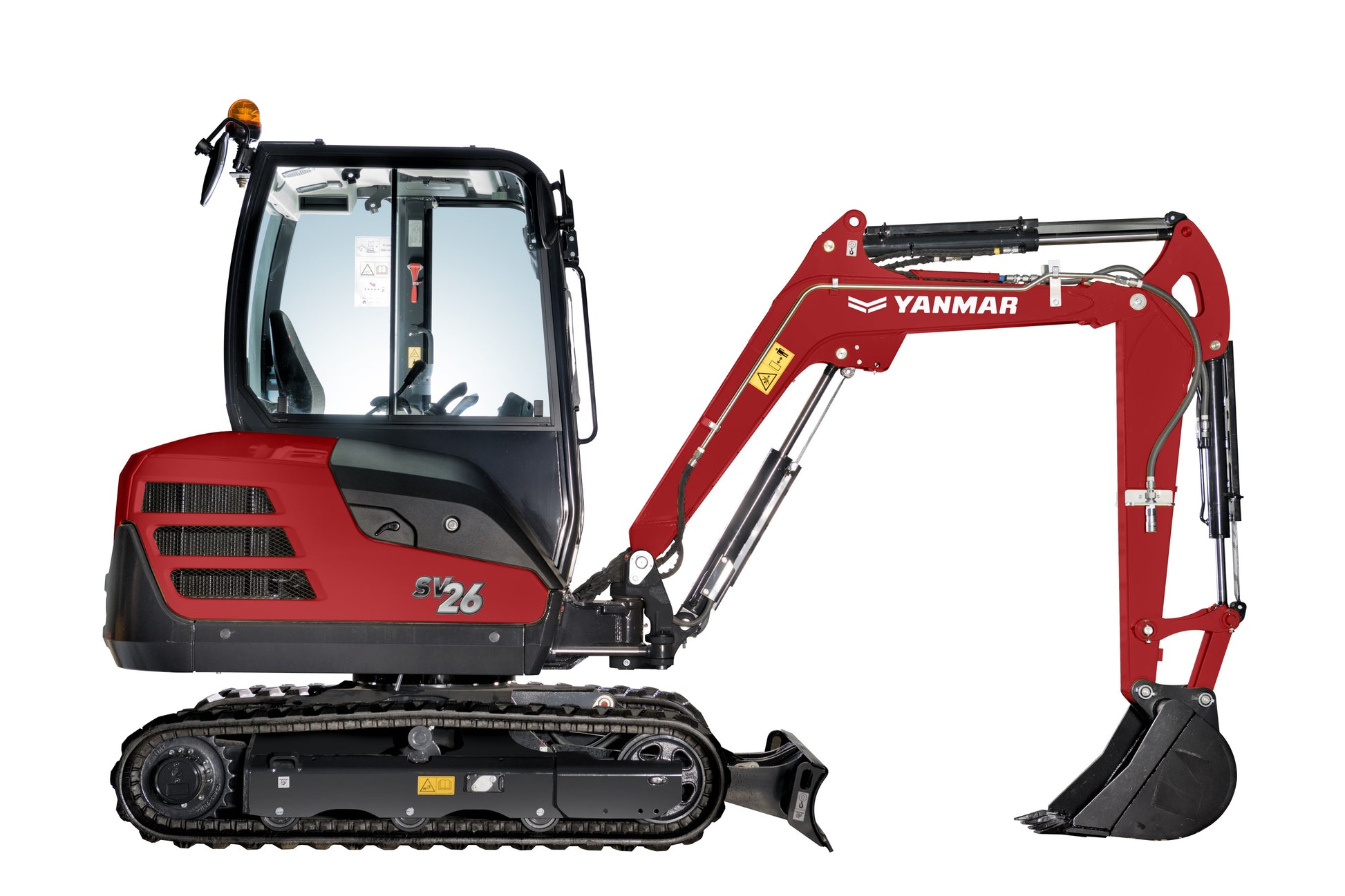

The Yanmar SV26 is available in both Cab and Canopy versions.
| Specifications | SV26 | |
|---|---|---|
| Weight | shipping weight | 2525 kg (canopy) / 2665 kg (cabin) |
| Operating Weight | 2600 kg (canopy) / 2740 kg (cabin) | |
| Motor | Type | 3TNV82A-BPBVA |
| Fuel | Diesel | |
| Net Power | 17.6 kW / 23.9 hp at 2400 rpm | |
| Rated power | 18.1 kW / 24.8 hp at 2400 rpm | |
| displacement | 1,331 liters | |
| Maximum torque | 85.5 Nm at 1400 rpm | |
| Starter | 2.3 kW | |
| Battery | 12V – 56Ah | |
| Alternator | 12V - 40A | |
| Hydraulic system | Maximum pressure | 210 bar |
| service pump | 2 double piston pumps with variable flow | |
| Maximum flow | 2 x 32.4 l/min / 21.6 l/min / 10.8 l/min | |
| Hydraulic Tank | 25.2 l | |
| Performance | speed of progress | 2.9 / 4.8 km/h |
| Rotation speed | 10.2 rpm | |
| Digging force (arm) | 14.5 / 12.7 kN | |
| Digging Force (bucket) | 24.5 kN | |
| Tractive force | 37 kN | |
| Noise level (2000/14/EC & 2005/88/EC) | Lwag: 76 dBA ; Lpag: 94 dBA | |
| Fuel tank | 38.5 l | |
