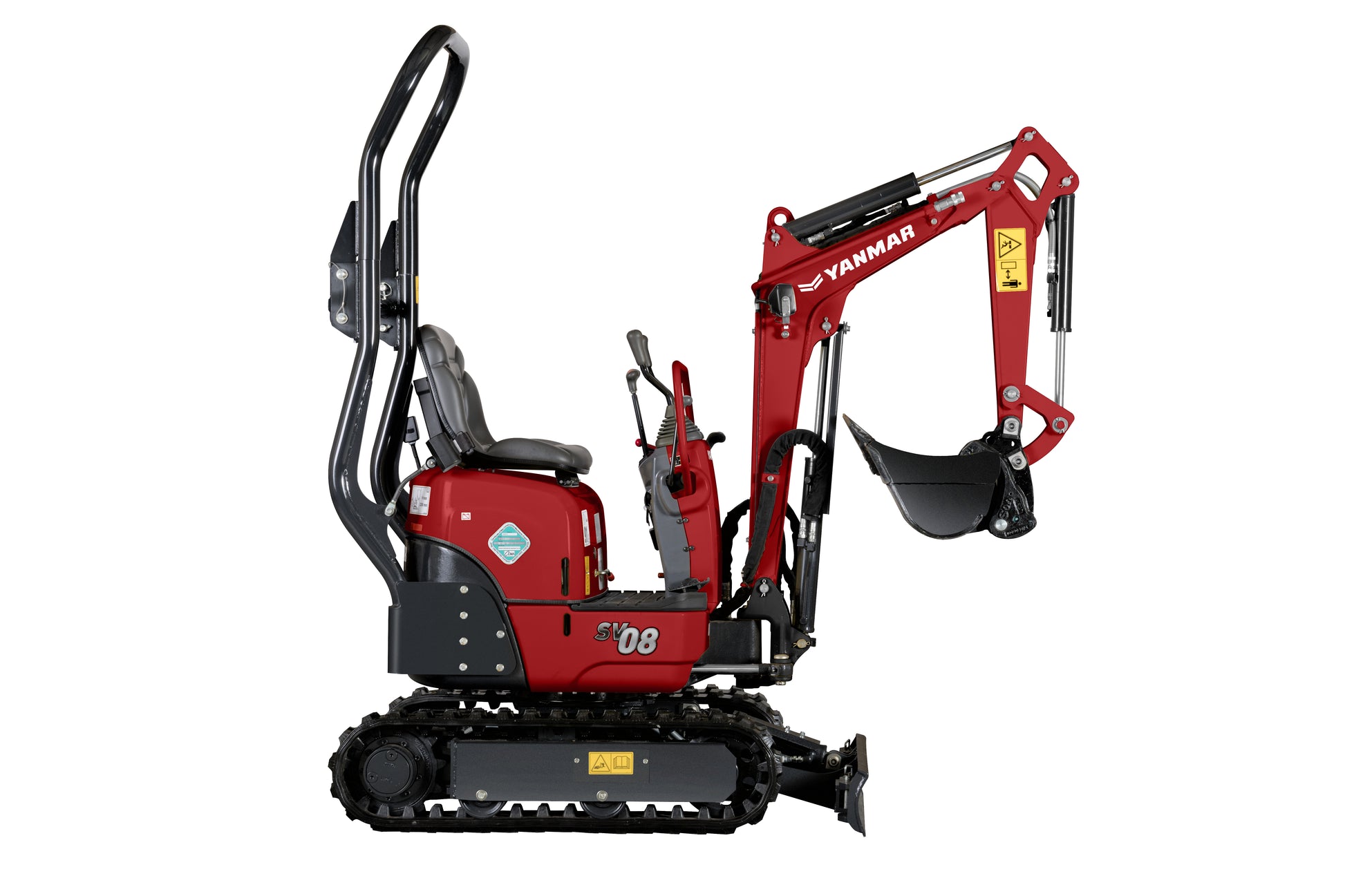

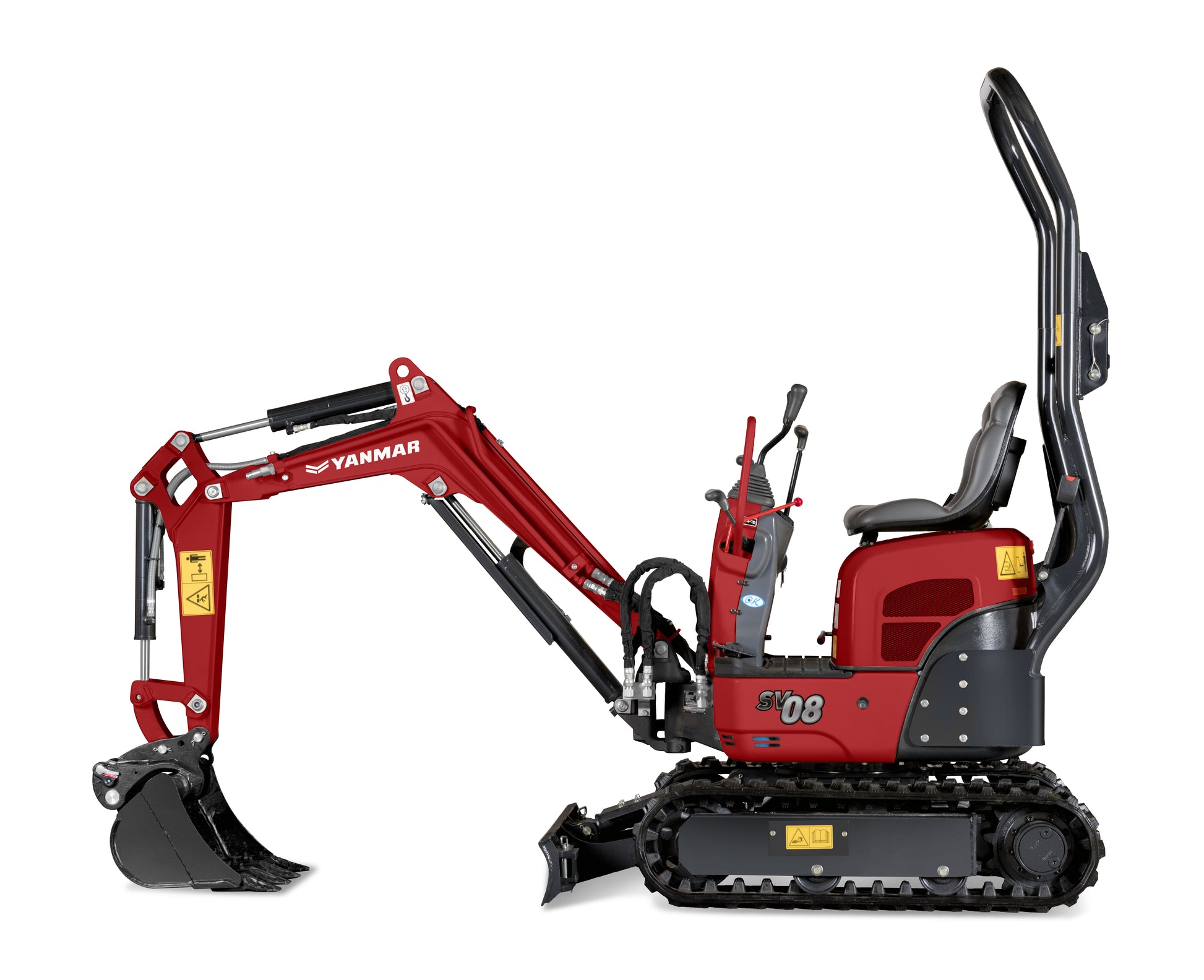

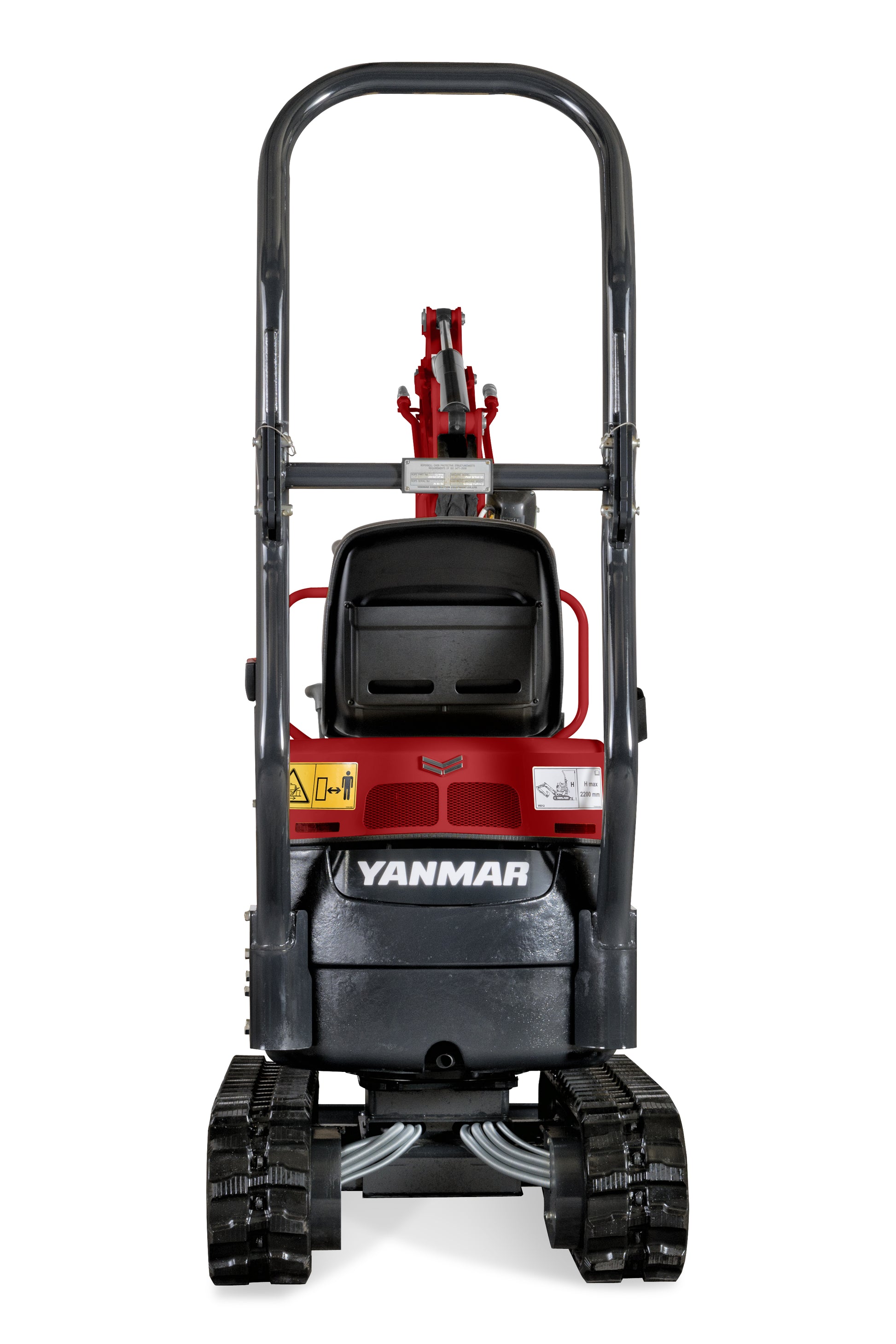

Yanmar SV08-1C Mini Excavator

Yanmar SV08-1C Mini Excavator

New

Model:

SV08-1C

Weight:

960

Engine:

Yanmar 10.2CV See catalog

Share

View full details

Details

Specifications SV08-1C
Weight shipping weight 960 kg
Operating Weight 1035 kg
Motor Type 402J-05 IG84555R
Fuel Diesel
Net Power 7.5 kW / 10.1 hp at 2400 rpm
Rated power 7.7 kW at 2400 rpm
displacement 0.507 l
Maximum torque 31.5 Nm at 2000 rpm
Starter 12 V - 1.2 kW
Battery 12V – 30Ah
Alternator 12V - 14A
Hydraulic system Maximum pressure 185 bar
service pump double pump
Maximum flow 2 x 9.8 l/min
Hydraulic Tank 5.7 l
performance speed of progress 1.8 / 3.7 km/h
Rotation speed 8.4 rpm
Digging force (arm) 5.9 kN
Digging Force (bucket) 10 kN
Tractive force at
Noise level (2000/14/EC & 2005/88/EC) 92 dBA
Fuel tank 9.7 l
