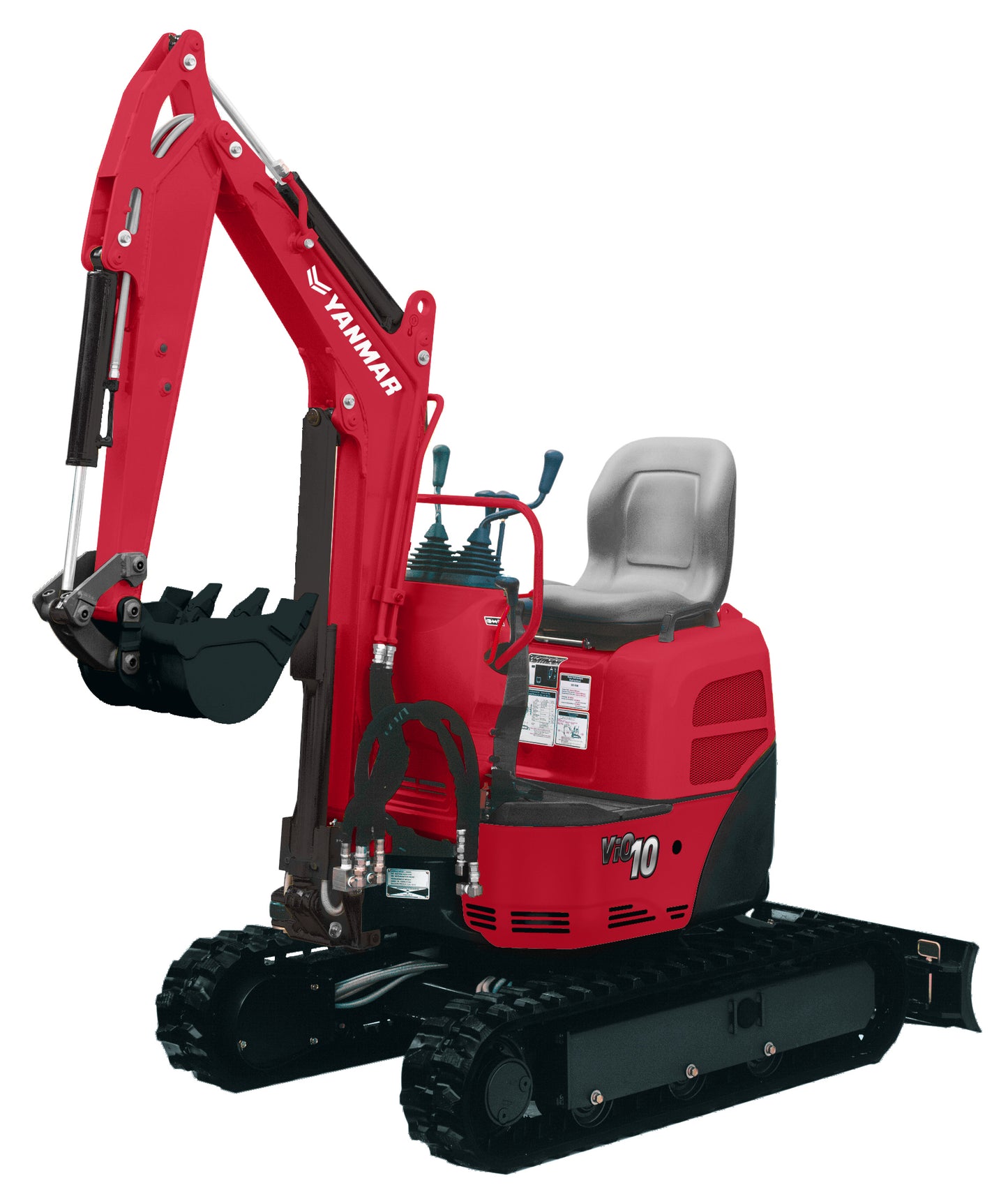

Yanmar VIO10-2A Mini Excavator
Yanmar VIO10-2A Mini Excavator
Model:
VIO10-2AWeight:
1.220Engine:
Yanmar 12.5CV See catalogShare
Details
Excellent maneuverability and performance in difficult environments.
With the Yanmar Vio 10-2A variable chassis, it allows excellent adaptability to difficult environments. With the chassis extended it becomes a zero radius machine and when retracted even highly confined environments become accessible. Longer tracks increase stability and smoothness, while an extendable folding blade increases maneuverability. It also gains in performance, thanks to the powerful engine and advanced hydraulic system. The thoughtful and easy-to-operate design ensures that maintenance is a simple task.
Specifications | ViO10-2A | |
---|---|---|
Weight | Shipping Weight | 1145 kg |
Operating Weight | 1220 kg | |
Motor | Type | 3TNV70-WBVB |
Fuel | Diesel | |
Net Power | 9.2 kw/12.5 hp/2000 rpm | |
Rated power | 9.3 kW at 2000 rpm | |
Displacement | 0.854 l | |
Maximum torque | 52 Nm at 1600 rpm | |
Starter | 12V - 1.1 kW | |
Battery | 12V – 36Ah | |
Alternator | 14V – 8.5A | |
Hydraulic system | Maximum pressure | 210 bars |
Service pump | Double piston pump with variable flow | |
Maximum flow | 2 x 11 l/min | |
Hydraulic Tank | 7.4 l | |
Performance | Walking speed | 2.1 km/h |
Rotation speed | 10rpm | |
Digging force (arm) | 5.58 kN | |
Digging force (bucket) | 13.72 kN | |
Tractive force | at | |
Noise level (2000/14/EC & 2005/88/EC) | 88 dBA | |
Fuel tank | 12 l |
