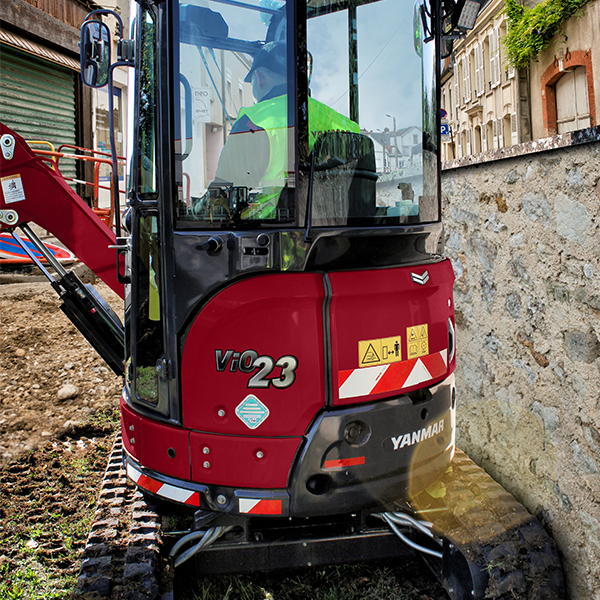

Yanmar VIO23-6 Mini Excavator
Yanmar VIO23-6 Mini Excavator
Model:
VIO23-6Weight:
2.465Engine:
Yanmar 20.7CV
See catalog
Share
Details
The Yanmar Vio 23-6 is available in both Cab and Canopy versions.
| Specifications | ViO23-6 | |
|---|---|---|
| Weight | shipping weight | 2170 kg (canopy) / 2330 kg (cabin) |
| Operating Weight | 2245 kg (canopy) / 2405 kg (cabin) | |
| Motor | Type | 3TNV76-PBV1 |
| Fuel | Diesel | |
| Net Power | 14.3 kW at 2400 rpm | |
| Rated power | 14.6 kW at 2400 rpm | |
| displacement | 1.11 l | |
| Maximum torque | 62.8 – 68.6 Nm at 1800 rpm | |
| Starter | 12 V - 1 kW | |
| Battery | 12V – 36Ah | |
| Alternator | 12V - 40A | |
| Hydraulic system | Maximum pressure | 210 bars |
| service pump | 2 double piston pumps with variable flow | |
| Maximum flow | 2 x 21.6 l/min / 20.4 l/min / 10.8 l/min | |
| Hydraulic Tank | 25 l | |
| Performance | speed of progress | 2.2 / 4.2 km/h |
| Rotation speed | 10 rpm | |
| Digging force (arm) | 13.1 / 10.6 kN | |
| Digging Force (bucket) | 17.5 kN | |
| Tractive force | 23.7 / 11.6 kN | |
| Noise level (2000/14/EC & 2005/88/EC) | Lwag: 93 dBA ; Lpag: 80 dBA | |
| Fuel tank | 27.5 l | |
