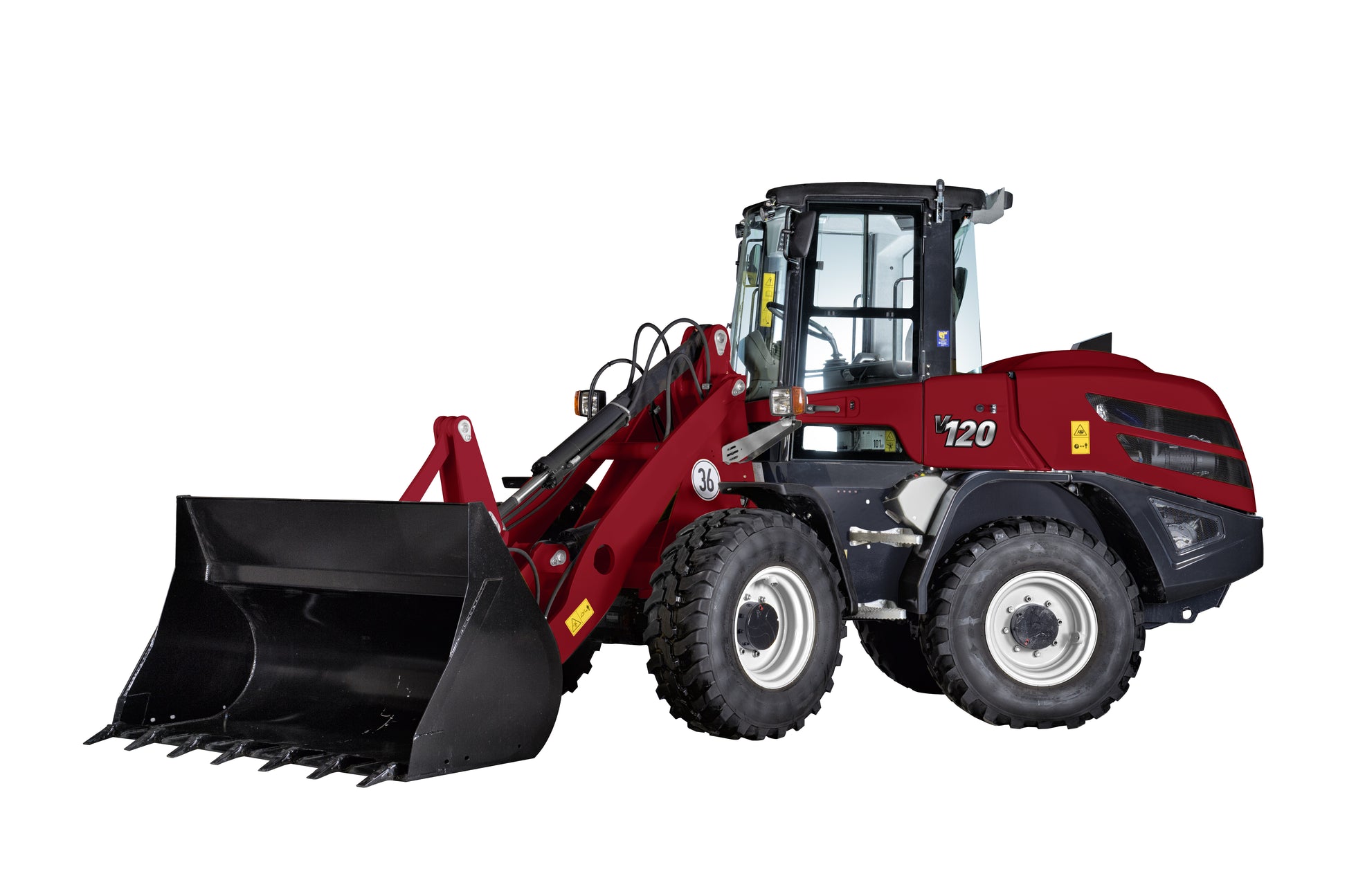

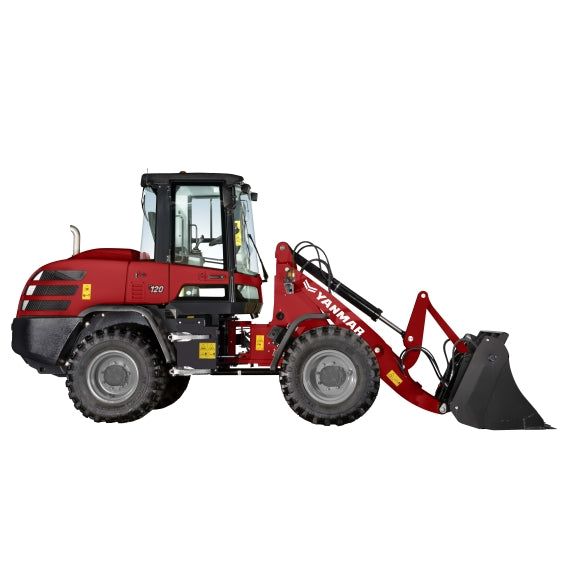

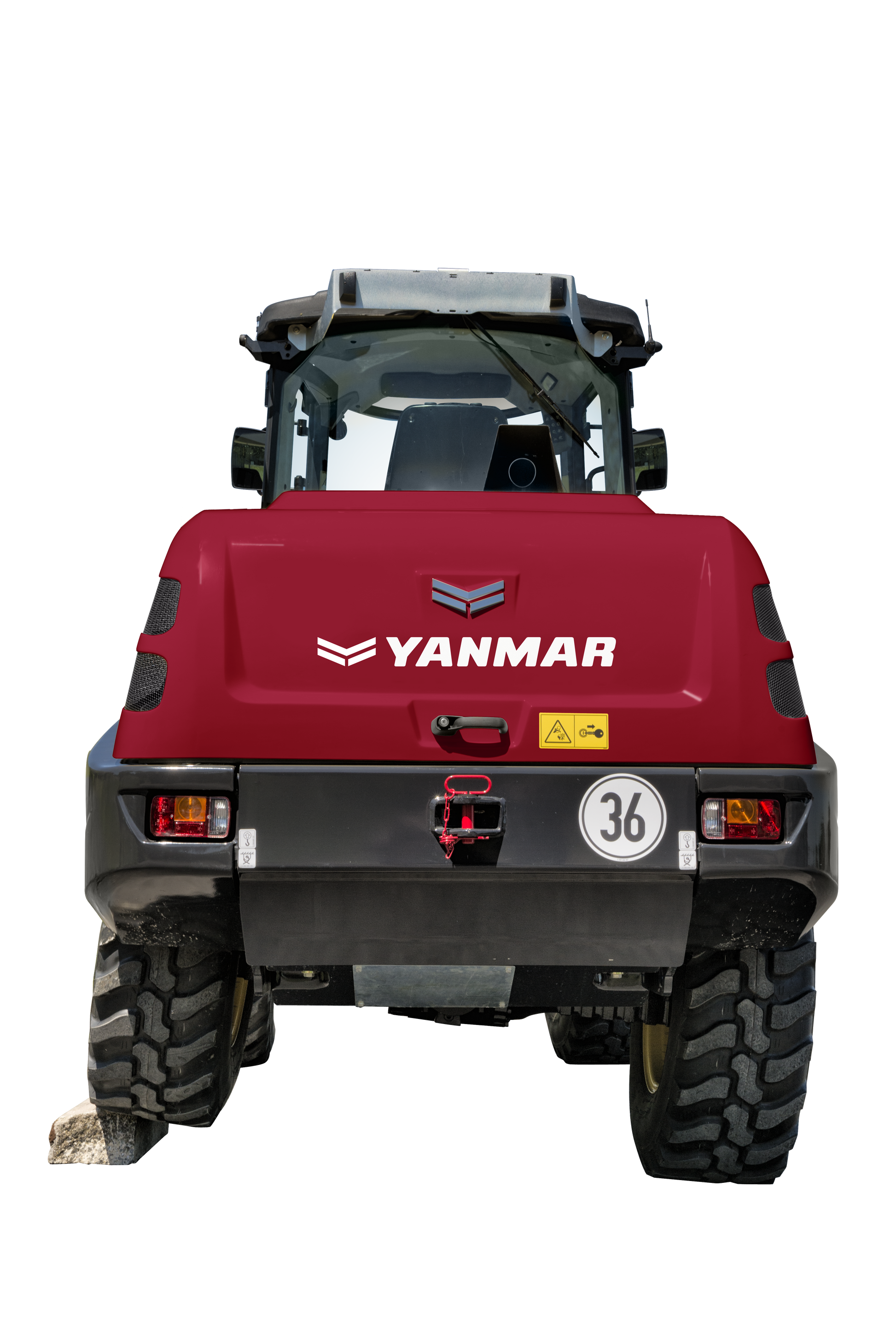

Loader Yanmar V120

Loader Yanmar V120

New

Model:

V120

Weight:

7.000

Engine:

Deutz 101.0CV See catalog

Share

View full details

Details

Weight Shipping Dimensions 5 480 x 2 100 x 2 780 mm Operating Weight 7 000 kg Motor Type Deutz, TCD 3.6 L4 Fuel Diesel Net Power 74.4 kW / 101 HP / 2000 rpm displacement 3 600 cm³ Maximum torque 300 Nm at 1,600 rpm Starter 12V / 2.6kW Battery 12V / 77Ah Alternator 14V / 95A Hydraulic system service pump Proportional hydraulic valve with 3-way control lever (joystick) for operating lift and tilt cylinders with integrated drive direction and speed range knob Maximum flow 78 l/min operating pressure 250 bar Hydraulic Tank 93 l tempo system front axle Rigid planetary final driveshaft, center mounted disc brake. Slip Differential Limits 45% rear axle Oscillating planetary final driveshaft, with integrated reducer, oscillation lock with swivel top carriage. Tires (standard) 12.5-20 MPT 04 speed of progress 0 - 20 km/h sound level sound level LwA = 101 dB(A) / LpA = 74 dB(A)
