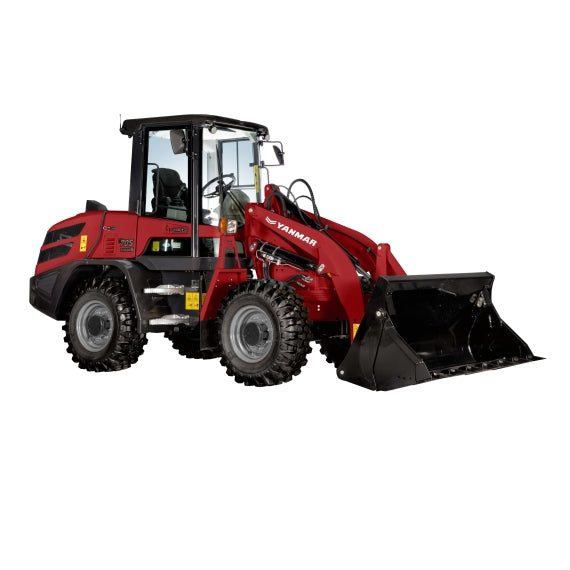

Loader Yanmar V70S

Loader Yanmar V70S

New

Model:

V70S

Weight:

5.400

Engine:

Yanmar 61.0CV See catalog

Share

View full details

Details

Weight Shipping Dimensions 5090 x 1850 x 2660 mm Operating Weight 5 400 kg Motor Type 4TNV98C Fuel Diesel Net Power 46.2 kW (63 HP) at 2200 rpm displacement 3 318 cm³ Maximum torque 241 Nm at 1 430 rpm Starter 12 V / 3.0 kW Battery 12V / 100Ah Alternator 14V / 80A Hydraulic system service pump Hydraulic proportional valve with 3 control circuits Maximum flow 65 l/min operating pressure 250 bar Hydraulic Tank 55 l tempo system front axle Rigid planetary final driveshaft, center mounted disc brake.

Slip differential limit 35%

rear axle Oscillating planetary final driveshaft, with integrated reducer, oscillation lock with wheeled top carriage. Limited slip differential 35% Tires (standard) 12.5-20 MPT 04 speed of progress 0 - 20 km/h sound level sound level LwA = 101 dB(A) / LpA = 78 dB(A)
