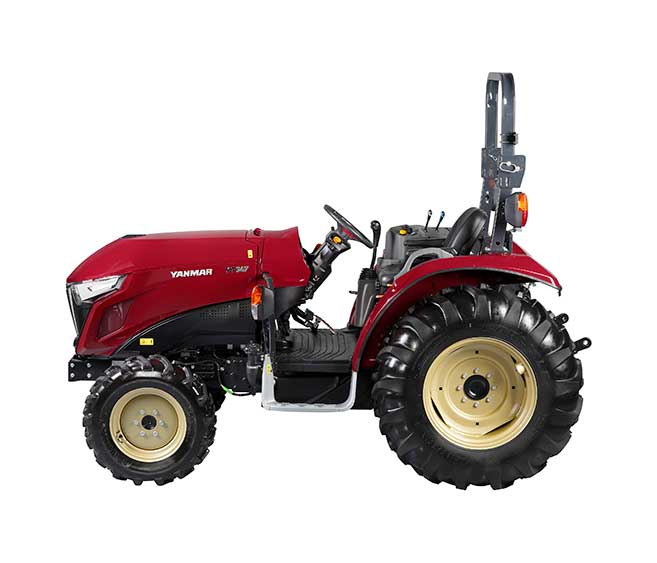

Yanmar YT347 Canopia Tractor
Yanmar YT347 Canopia Tractor
Model:
YT347 CanópiaWeight:
1.810Engine:
Yanmar 47.0CV
See catalog
Share
Details
Canopy Version
| Feature | Specification | |
|---|---|---|
| Motor | Engine Name | 4TNV88C |
| Engine Power - UNECE Regulation No. 120 (kW) | 34.3 | |
| Engine Power (hp) | 47.0 | |
| number of cylinders | 4 | |
| Engine Size (ccm) | 2,189 | |
| Torque (Nm) | 140.4 | |
| Motor Speed (1/min) | 2,800 | |
| Alternator (A) | 12V/55 | |
| Battery (Ah) | 12V/70 | |
| Displacement Section | Transmission Type | i-HMT-Vario |
| Brake system | Multiple Wet Brake Disc | |
| Traction | 4WD Selectable | |
| Turning Radius - Internal Radius (mm) | 2,920 | |
| Number of Gears | 3 | |
| Maximum Speed - Highest Gear (km/h) | 31.0 | |
| Towing Capacity - Unbraked (kg) | 1,500 | |
| Towing Capacity - Braked (kg) | 6,000 | |
| Maximum Front Axle Load (kg) | 1,600 | |
| Maximum Rear Axle Load (kg) | 2,300 | |
| Maximum Allowable Weight (kg) | 3,185 | |
| PTO Power rear (kW) | 26.0 | |
| Rear PTO, speed (1/min) | 540/750 | |
| Rear PTO (type) | 1 3/8", 6 splines | |
| Mid. PTO, speed (1/min) | AT | |
| Front PTO, speed (1/min) | 1,000 | |
| Front PTO: 2000 (1/min, 1" , 15 splines) | Optional | |
| Fuel tank capacity (L) | 48 | |
| Hydraulic oil tank capacity (L) | 29 | |
| Steering System | Hydraulic Assisted | |
| Hydraulic pump capacity (L/min) | 60.0 | |
| Steering Pump (L/min) | 21.7 | |
| Hydraulic Pump Implements (L/min) | 38.3 | |
| Hydraulic Pressure (bar) | 167 | |
| Hydraulic Connections | 2 sets | |
| 3 Point Lifting Capability | Rear (kg) | 1,660 |
| 61cm behind the pick-up point - Rear (kg) | 1,400 | |
| frontal (kg) | 850 | |
| 61cm behind the lifting point - Front (kg) | 650 | |
| Dimensions and Weight | Total Length (mm) | 3,355 |
| Overall Width (mm) | 1,639 | |
| Ground Height (mm) | 380 | |
| Wheelbase (mm) | 1927 | |
| Height (mm) | 2,450 | |
| Weight (kg) | 1,800 | |
| MidMower M60 Cutter Width (cm) | AT | |
| MidMower Cutter Cutting Width (cm) | AT | |
| Cabin | No | |
