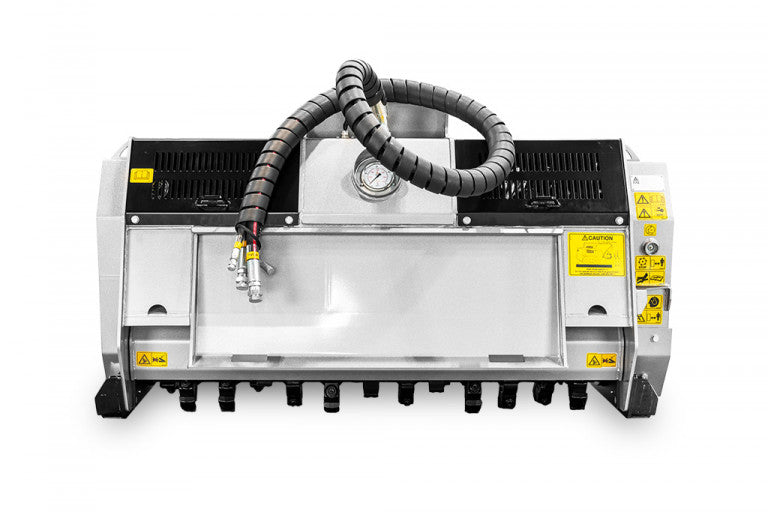

Fixed Teeth Stone Crushers for Mini Wheel Loaders and Wheel Loaders.

Designed and built for mini wheel loaders and high flow wheel loaders. Its compact size makes it an ideal solution for dirt and gravel roads, bicycle and horse tracks, driveways, curbs, landscaping and smaller job sites, as well as farmland reclamation. The engineered spiral rotor configuration ensures uniform, highly productive shredding capability and the Hardox® counter knives allow you to adjust the size of the final product. The rear hydraulic door is used to adjust the amount of material exiting the crushing chamber.

Motor CV 90-120 flow requirements l/min 110-150 Pressure Pub 220-350 working width mm 1590 Overall width mm 1894 Weight kg 1210 Working depth Max. mm 150 rotor diameter mm 450 Number of teeth (type STCL/3+C/3/SS) # 32+4

Optional:

On request.
